D-m-e 20D-13 2" 1-3/8" #5 cavity steel molding cylinder
D-M-E 20D-13 2" 1-3/8" #5 CAVITY STEEL MOLDING CYLINDER

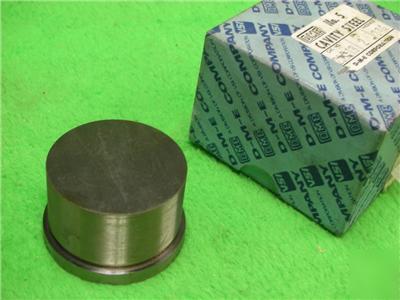

This listing is for new old stock in its original DME box. Used for die casting and plastic injection molding. DA = 2", Thickness (Length) = 1-3/8". Length of 2" dia. is 1-1/32", followed by a 3/32" long section 1-15/16" dia., and the a 1/4" section 2-3/16" dia. Measurements are approximate. See pictures for more details and please make sure that this is the part you need, as it is a non-returnable item. Thank you.
