Charmilles ram-type edm machine model: eleroda 110

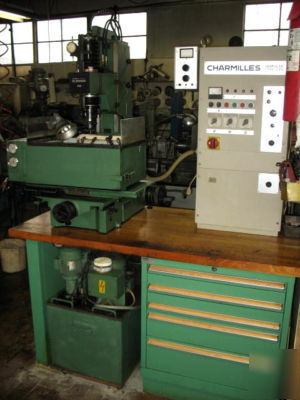

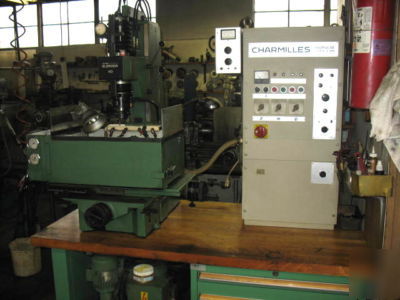

CHARMILLES RAM-TYPE EDM MACHINE
MODEL: ELERODA 110, S/N: 54598, NEW: 1986
WORKHEAD BACKSLIDE TRAVEL: 9.5"
QUILL TRAVEL: 3.9"
MAXIMUM ELECTRODE WEIGHT: 66 LBS.
TABLE SIZE: 13.8 L-R X 9" F-B
LONGITUDINAL TABLE TRAVEL: 7.9"
TRANSVERSAL TABLE TRAVEL: 4.7"
MAX. TABLE LOAD: 220 LBS.
INSIDE DIMENSIONS OF WORK TANK: 20.5" X 13.8"
MAX. DIELECTRIC LEVEL: 7.1"
RESERVOIR CAPACITY: 18 GALLONS
MAX. MACHINING CURRENT OF GENERATOR: 25 AMPS
ELECTRO-HYDRAULIC SERVO MECHANISM FOR WORKHEAD
ISOPULSE TYPE P25 GENERATOR, S/N: 36346
HANDWHEELS FOR TABLE TRAVEL GRADUATED TO .001"
TABLE WITH STORAGE DRAWERS, 60" L-R X 30" F-B X 35" HIGH
1/4 HP 3/60/220/440 VOLT DIELECTRIC PUMP MOTOR
MACHINE IS WIRED FOR 3/60/220 VOLT OPERATION
APPROXIMATE WEIGHT (WITHOUT TABLE): 925 LBS.
