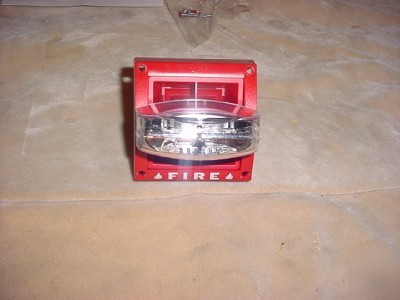

> SS12/24ADA series strobe sensor fire signaling system
SS12/24ADA series strobe sensor fire signaling system
SS12/24ADA SERIES STROBE SENSOR FIRE SIGNALING SYSTEM
and the more demanding requirements of the UL 1971 Standard
for the Hearing Impaired. A unique lens/reflector design
achieves 15, 75, or 110 candela light intensities while maintaining
a consistent light dispersement pattern. A
meets the requirements of ADA @ 75 candela and UL 1971 @
The SS12/24ADA Series of signaling strobes is available in a
choice of 12 or 24 VDC (including full wave rectified unfiltered
power), in red or beige. They can be mounted directly to a standard
4" backbox. The SS12/24ADA is available with System
for both visible and audible signaling.
SS12/24ADA Series signaling strobes are designedAmericans with Disabilities Act (ADA) 1575 model horns, as well as Sound Choice speakers
Complies with ADA and UL 1971 Standard for the Hearing
intensity; 12 VDC with 15 and 15/75 candela.
Available in 24 VDC with 15, 15/75, 75, or 110 candela light
No measurable in-rush in excess of peak current.
MASS12/24ADA Strobe with Multi-Alert Horn
Flash rate one flash per second (1 Hz).
Unique design for maximum visibility and reliability.
Use with Multi-AlertTM horn, Sound ChoiceTM SP100, or V400
Intended for primary signaling.
18 AWG (0.75 mm ) to 12 AWG (3.25 mm ).
mm). See dimensions diagrams on next page for details and
4" (101.6 mm) x 4" x 3" (76.2MASS12/24ADA.
5 oz. (141.747 g). MASS12/24ADA:
(38.1 mm) standard backbox (2-1/8" [53.975 mm] deep recommended).
4" (101.6 mm) x 4" (101.6 mm) x 1-1/2"
(38.1 mm) standard backbox (2-1/8" [53.975 mm] deep recommended)
with MP-SF semi-flush mounting plate (order
