Racine bosch hydraulic vane pump #psv psao 10HRM 62

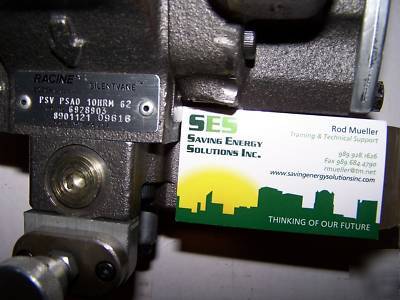

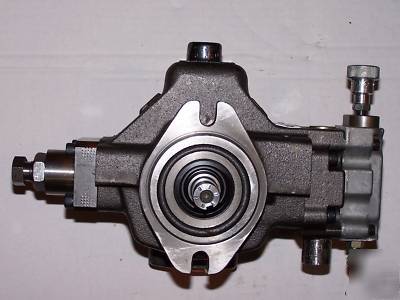

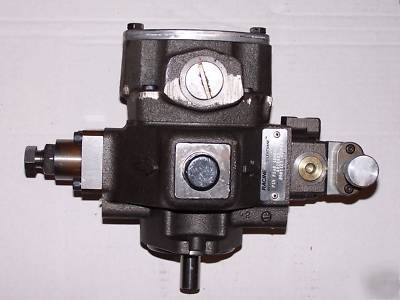

"Almost" New In Box!! Bosch Racine Silentvane Pressure Compensated Variable Volume Hydraulic Pump Model #: SV-10
Pump Code: PSV PSAO 10HRM 62 Pump Code Features: PSV = Pump, SilentVane. P = Pressure compensated. S = Screw volume control (variable volume). A = Flange, side ported (SAE straight thread for ORB fitting). O = Buna N seals. 10 = 7.5 GPM. H = 2000 PSI max pressure rating. R = Right hand rotation (CW). M = Medium keyed shaft (which is 3/4" diameter with a 3/16" keyway). 62 = 1st and 2nd stage changes. This pump uses the NFPA Standard 2-bolt Pump/Motor Mounting Flange SAE size A; which fits a two 7/16" bolt holes on a 4 3/16" bolt circle. The Pilot Diameter is 3 1/4" and the Pilot Height is 1/4".
