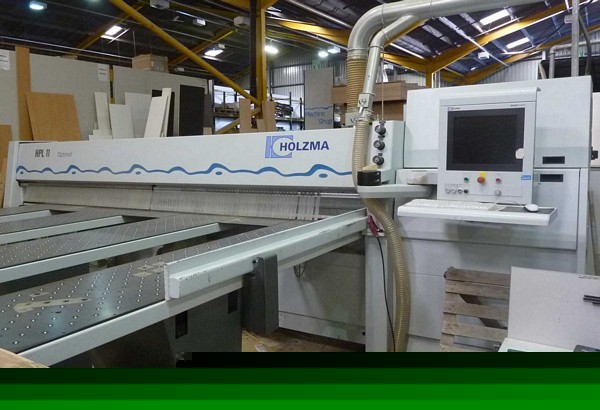

Holzma optimat HPL11/43/22 rear loading beamsaw

A single automatic panel sizing saw for accurate automatic cutting sheet materials such MDF MFC Composites Ply or Chipboard.High speed saw for chip-free dimensionally accurate cut-to-size of laminated andraw wood-based panels composites and other panels with similar cutting characteristics to wood-based panels.Technical Specification:Rear Loading . Feeding by rear lift table
Saw blade projection (4.9 inches) 125 mm
Saw carriage speed forward 5 -130 m/min
Program fence speed forward 80 m/min
reverse 80 m/mino mmcomplete cutting length
Main saw motor (18.3 HP) 135 kW
Scoring saw motor (3 HP) 22 kW
Max. opening of clamps (5.1 inches) 130 mm
Micro infeed at 1655 and 2850 mm 2 pes
Cutting length (169.2 inches) 4300 mm
The first three clamps with two fingersothers with one finger.max. forward25 m/min.In EC-countries thespeed restricted toSide pressure devicemin. aligning widthmax. aligning width75/275/475/1050/1850/2650/3450 mmdimension from angular fenceto centre of clamps2 additional clamps with two fingerspossible at 175/375 mm1 additional clamp with one finger1. Feeding by rear lift table
Automatic feeding is effected by an electrohydraulicfour column lifting table. The lifting table is equipped with a lengthwisedriven roller conveyor. The infeed of singleor books of panels is program-controlled automatically effected by two independent operating micro-infeed units+ Maximum efficiency of cut-to-size byautomatic feeding of panels (time optimizedfeeding resulting in minimum cost) .+ The design of the heavy-duty four-columnsallows the lifting platform to be easilyadjusted to the perfect horizontal feedingheight. Consequently feeding of thin panelsis also possible.+ Automatic height control by the machinecontrol CADmatic.+ No idle time during infeed because the microinfeedunits are mounted at the program fencedirectly in front of the clamps. Thus noreverse operation of the program fencerequired.+ For the precise measuring of the infeedheight the micro-infeed units are equippedwith a non-contact magnetic linear measuringsystem.+ The lifting platform is designed with twostandard cut-outs for feeding or unloadingby fork lift.+ Precise automatic cross alignment of singleor books of panels after the infeed cycle andprior cutting by automatic cross alignmentunits.+ The entire lifting table with infeed completelymaintenance-free without lubrication.2. Rear machine tablePerfect positioning of single or books ofpanels is effected on the rear machine tableequipped with high-quality Combiprofile rollerrails. Two automatic alignment units in frontof the cutting line.+ Cross-alignment prior cutting to prevent offsetpanels within a book.+ Automatic friction-free transport also forpanels with sensitive surfaces.3. Program fenceUpon separation off the remaining stack by thetwo CNC Holzma micro infeed units the openclamps take the book of panels over withoutidle time. After careful cross alignmentagainst automatic alignment cylinders clampsare closed and the book is perfectly positionedfor the first trim cut over the cutting line.+ The center position of the servo AC drivingmotor guarantees an equal power distributionto either side of the precision rack andpinion driving units. Thus an absolutelyparallel run of the program fence is guaranteed.+ The active Holzma safety system guaranteesmaximum security in accordance with all E.C.safety regulations without any fences aroundthe rear machine table.4. Measuring systemThe measuring system of the program fence isa non-contact electro-magnetic systemcompletely maintenance-free. Positioningaccuracy of the program fence +/- 01 rom.+ The measuring system has been developed byHolzma and is completely without mechanicalwear and tear. Measuring accuracy for lifetime.+ Absolutely insensitive to dust.+ The measuring system is completely independentfrom the driving and the guiding systemof the program fence.5. Machine bed (saw body)The entire heavy-duty machine bed is equippedwith wear resistant large surface cover boardswith the corresponding grooves for the clamps.+ The grooves are routed into the boards and not into the steel machine bed. Consequentlythe full stability of the solid machine bedremains without any weakening by grooves.+ Easy exchange of boards in case of necessity.+ Cutting operation towards the heavy-dutyrigid angular fence in steel design. Thisprevents any movement of panels duringcutting.6.
The solid Holzma pressure beam (in re-inforcedaluminium design against twisting) is under allcutting conditions always equally guided by aone length shaft and rack and pinion control oneither side.+ Uniform pressure onto the entire surface of the book of panels.+ The pressure is applied equally on eitherside of the cutting line resulting in anoptimum cutting quality.+ Variable pressure beam control controlsopening of pressure beam depending onmaterial thickness thus reducing cycle timeof the machine considerably.+ In accordance with panel characteristics thepressure can be adjusted by a manometer.+ The design of the profile of the pressurebeam guarantees maximum exhaust efficiencyfor saw dust.+ The integrated safety curtain at the frontprovides maximum safety for the operator.7. Saw carriage with integrated side alignerThe saw carriage is designed in solid rigidsteel construction equipped with a main andscoring saw.The side aligner represents an integrated partof the CNC-controlled saw carriage.Upon perfect positioning the aligning unit raises program-controlled through the cuttingline for controlled uniform side pressure ofthe panels against the solid angular fence.+ The side aligner is precisely positioned bythe saw carriage resulting in reduced cycletimes.+ The degree of side pressure is infinitelyvariable and adjustable from the CADmaticcontrol.+
The patented vertically designed 'Monorail'saw carriage guiding system is located rightnext to the cutting line. This prevents theamplification of vibrations and their effecton the cutting quality.+ 10 years guarantee for the precision guidingrods of the saw carriage.+ Powerful drive via rack and pinion byoptimized acceleration and decelerationat maximum speedwithout grease or any lubricationconsequently maintenance-freeno amplification of vibrationsprecise positioning+ Main and scoring saw are equally guided onboth sides stabilizing the lifting andlowering movement of saw assembly unitthus preventing flexing of the saw blades.+ Superior cutting quality by means of thefollowing advantages:- automatic infinitely cutting height adjustmentfor consistent saw blade projectionover whatever varying book heightautomatic cutting length control by specialsensor. Saw carriage travelling just therequired length of the panel material beingcut.motorized adjustment of the s coring sawfrom the CADmatic control panelPower loc saw blade changing system e.g.quick and easy mechanical saw bladechanging systemsaw carriage forward speed infinitelyadjustable from the CADmatic control panelmost effective exhaust system via dustchannel8. CADmatic controlThe Cadmatic control represents a CNC-machinecontrol based on an industrial PC-systemspecially designed for industrial environments.+ insensitive to dust+ insensitive against vibration+ insensitive relative to temperaturevariationsHardware / softwaremodem:operating system:monitor:56 kWindows15 inch flat TFT display+ Complete cutting sequence illustrated bymoving graphics.+ Almost unlimited number of cutting patternsto be stored in the memory.+ The CADmatic control is designed for hightechnetwork applications. Cutting patternsgenerated by an external optimization softwarecan be transferred either on-line orby floppy disc to the CADmatic machinecontrol (option).+ All CADmatic controls are equipped with anintegrated modem for direct data communicationwith Holzma via telephone lineWith the availability of the modem all preconditionsare arranged for a teleservicecontract with Holzma (sales option 8701)beyond the warranty period.+ Chipping of material could be avoided in caseof sensitive materials by the integrated'slow-down' function.+ The entire CADmatic control is designed undermost advanced ergonomical pre-conditions.+ The CADmatic is equipped with dust insentivefloppy and CD drives.+ The CADmatic contains separate memories fordata input and operational memory.Consequently data input is possible at alltimes without any interruption of the machineoperation.+ High-tech error diagnosis by true photosand video clips for immediate identificationof the source of the problem.The CADmatic represents a control based onthe state of the art high-tech soft- andhardware and guarantees most efficientcut-to-size operations today and in the future.
