Hobart stickmate ac welder 230V, 205 amp 500502

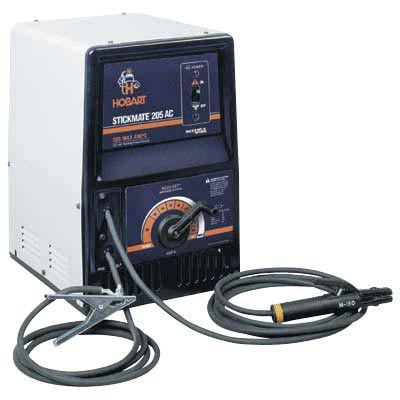

Hobart Stickmate AC Welder 230V, 205 Amp 500502
Hobarts STICKMATE models are the top performers in their class. 205AC model comes with the Accu-Set infinite amperage control, weld time increases up to 100% with decreased output. Recommended to cut steel, stainless steel, and cast iron. U.S.A. Volts: 230, Amps: 30-205, Duty Cycle: 20% at 165 Amps, 100% at 90 Amps, Amperage Adjustments: Accu-Set infinite current control, 1 amp increments, Range Selection: Single, Weldable Metals: Steel, stainless steel, and cast iron, Weld Thickness (in.): 3/8in., Electrode Size (in.): 1/16 - 5/32, Electrode Cable Length (ft.): 12, Clamp Cable Length (ft.): 10, Power Cord (ft.): 5, Dimensions L x W x H (in.): 12 3/4in. x 17 1/2 x 18 3/4 NEMA 6-50 style plug included Amps input @ rated output 50/60 Hz: 230V:47.5 Maximum open circuit voltage: 80 Accu-Set amperage indicator for accurately controlling amperage or heat output Infinite current control allows the operator to adjust output by as little as 1 Amp increments Duty cycle increases as amperage setting decreases; 100% duty cycle @ 90 Amps, 25V Fully varnished magnetic coils for enhanced coil reliability and life Forced-draft cooling fan runs continuously and helps to extend the life of the power source 5/3/1 Industrial Warranty 5-year warranty on transformers, stabilizers, reactors, rectifiers, rotors, stators and brushes 3-year warranty on drive systems, PC boards, solenoid valves, switches and controls 1-year warranty on MIG guns, plasma torches, relays, contactor, triggers, regulator, accessories, spool guns, battery, field options and running gear. (90 days Normal wear items such as drive rolls, contact tips, nozzle, gas diffuser, plasma torch tips and electrodes and weld cables are not covered under warranty Engine warranty is provided by the engine manufacturer
