Dorma model 8616 AF86P cov SNB1 689 door closer
Dorma Model 8616 AF86P COV SNB1 689 Door Closer

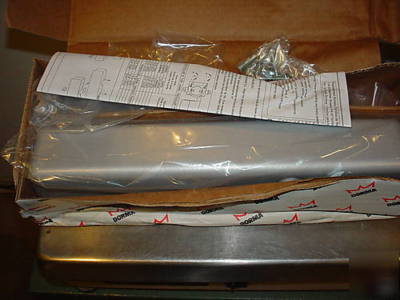

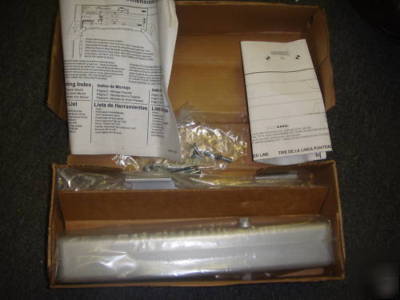

This is for one new Dorma Model 8616 AF86P COV SNB1 689 Door Closer commercial door closer, aluminum in color, specs to follow at the end of the listing. The full label on the box reads: 8616 AF86P COV SNB1 689 Door Closer and also Tight Lock Arm Attachment. Retails for 151.00. This door control also features a backcheck positioning adjustment for parallel arm applications, to maintain an ANSI backcheck range similar to regular and top jamb applications. The modern slim cover, flat form arm, and architectural finishes provide the aesthetic qualities required of architectural grade closers.
Technical Details: * Available as 8616 closers for interior and exterior doors
* Meets barrier-free requirements (adjustable size 1 thru 6)
* Non-handed for regular, top jamb and parallel arm applications
* Adjustable backcheck standard. Controls opening motion during abusive or abrupt opening
* Backcheck positioning valve standard. Maintains effective backcheck range on parallel arm applications. Valve is accessible with the closer installed
* Optional delayed action adjustable with a separate independent valve. Delays door closing to allow unobstructed passage through the opening
* Slim plastic cover standard. Full plastic or metal cover optional
* Designed to minimize change in closing speed during severe temperature changes
* Aesthetically pleasing and easy to adjust steel flat form arm assembly
* A full complement of optional arms, plates, and brackets available for special applications
* SNB1 sex nuts and machine screws for 1-3/4" thick doors included standard
* Hold open option available
