Aeroflex weinschel 1440-3 attenuator 100W 4.0GHZ n
Aeroflex Weinschel 1440-3 Attenuator
High Power Coaxial Termination
100W DC to 4.0GHz Female N-connector
Compact Construction - Lowest size/power ratio.
Rugged Construction - Quality connector with special high temperature support bead.
Ideal for Wireless Applications.
100 watts average (mounted horizontally assuming unobstructed air flow and natural convection around unit) to 25 C ambient temperature, derated linearly to 10 watts @ 125 C. 10 kilowatts peak (5 sec pulse width; 0.5 % duty cycle).
SWR Testing performed across the frequency band. Test data is available at additional cost.
Female N-connector per MIL-STD-348 interface dimensions - mate nondestructively with MIL-C-39012 connector.
Black, finned aluminum body, stainless steel connector; gold plated beryllium copper center contacts.

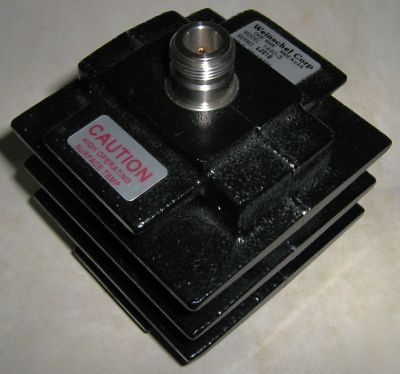

Photos show a representative unit.
Click on the photo below to see more detailed photos:
