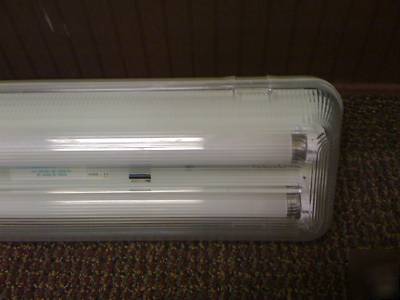

T8 fluorescent light fixture water proof vapor tight
HIGH EFFICIENCY, LOW-TEMP LIGHTING LIGHTING - FULLY ENCLOSED SEALED AND GASKETED, VAPOR PROOF, WATER PROOF, NEMA 4X RATED, UL cUL listed, NSF Picture 012Picture 009Picture 010Picture 012
* Energy efficient, quick-start at low temperatures for coolers, freezers and other applications requiring water resistance.
* Advanced energy saving fluorescent fixtures increase efficiency, produce less heat and reduce operating cost.
* Shatterproof polycarbonate diffuser.
* Built-in gasket assures moisture-proof operation.
* EZ-mount design with tethered snap-in-place reflector simplifies installation.
* Polished aluminum reflector is available for customized light distribution.
Nominal 48". Overall dimensions: 50" L x 6-5/8" W x 5-3/16" H (1270.2 x 168.6 x 131.4mm).
Reinforced polyester with integral silicone gasket.
High impact polycarbonate diffuser; high gloss white painted sheet metal reflector; snap-on latches for easy access to bulbs and ballast.
T5HO LIGHT OUTPUT (FC - FOOT CANDLES) T8 LIGHT OUTPUT (FC - FOOT CANDLES)
Enclosed and mounted on tray with safety tethers. Freezer, T5HO, start -20 F (-29 C). Cooler, T8, start 0 F (-17 C).
120VAC and 220-240VAC @ 50/60 Hz; two wiring knockouts. Furnished with one plug and one die-cast, water-tight hub for rigid conduit connection. Complies with NEC regulations.
Attach two, Lock & Hold mounting brackets to ceiling; mount supplied conduit hub to housing; snap housing into mounting brackets.
1. 5 year manufacturer's warranty
2. If the item is defective, please notify us within 3 days after the receipt of the item.
3. The item is not refundable after 30 days
*Offers are entertained on quantity. Please contact me for details.
