Prince control valve - 4-way/3-position, detent SVW1BB1
Prince Control Valve - 4-Way/3-Position, Detent SVW1BB1

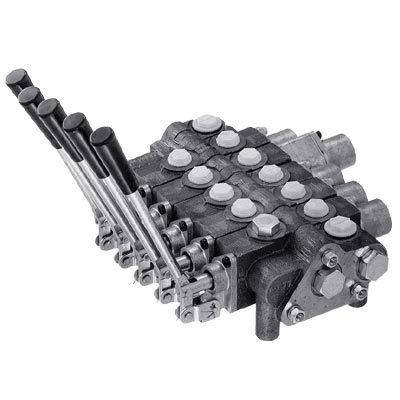

Sectional body hydraulic directional control valves for mobile and industrial hydraulic systems. For use with double-acting cylinders. U.S.A. Product shown is representational; actual unit is single-valve body only. Inlet Port (in.): ;pound;10 SAE, Working Port (in.): ;pound;8 SAE, Max. PSI: 3,000, Max. Flow (GPM): 12, Adjustable Release Pressure PSI: 1,500 - 3,000 Single-valve body only Inlet or outlet section not included Does not include through-bolt kit 4-Way/3-Position Detent Precision ground spools 1-10 sections per valve bank Load checks on each section Hard chrome-plated spools Compact construction Reversible handle Parallel circuit construction Foot mounting 3/4-16 ORB, 7/8-14 ORB
