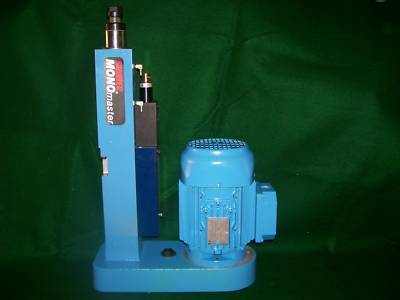

New suhner mono master bem-6-80 drill head

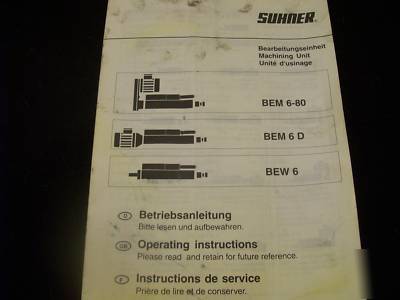

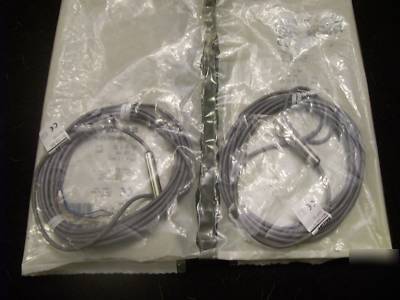

You are looking at a BRAND NEW NEVER USED Suhner Monomaster BEM-6-80 Drill Head. Also comes with sensors & instruction booklet. All information in listed below...
Machining Unit- drilling capacity max. dia. 6mm

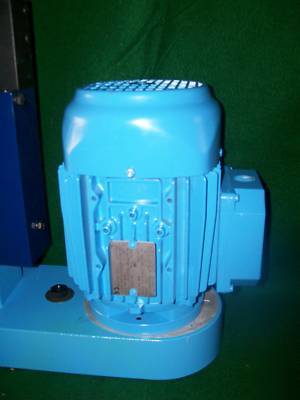

BEM 6 machining units are equipped with a 3-phase electric motor & can be used in single-purpose applications.

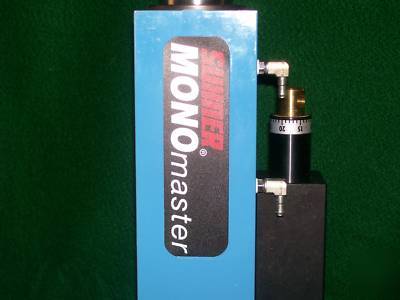

-integrated pneumatic feed & hydraulic brake-cylinder assembly for rapid advance & feed control.
-BEM 6 = standard version. BEM 6 E = peck feed version

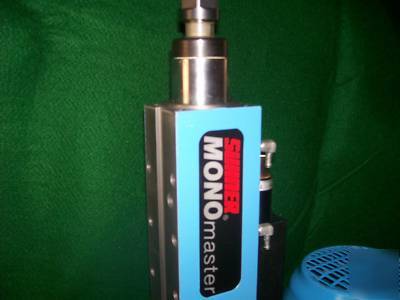

-precision collet toolholder system
-precision angular contact spindle bearings
-standard electric or optional pneumatic limit switches
-slim design. high performance to size ratio
-variable spindle speed combinations with interchangeable push-on pulleys
-BEM 6 ST & BEM 6 E-ST version with automotive type spindle
Max. drilling capacity - 0 6 mm/ 600 N/mm
Speed range at 50 Hz - 550-7730 RPM
Speed range at 60 Hz - 660-9276 RPM
Air consumption - 0.1/cm stroke
Braking stroke variable - 50 mm
Motor rating at 50 Hz - 0,37 kw / 0,37 kw
Motor rating at 60 Hz - 0,44 kw / 0,44 kw
Standard voltage 50 Hz - 230 / 400 V
Standard voltage 60 Hz - 230 / 460 V
Motor speed at 50 Hz - 2900 / 1450 RPM
Motor speed at 60 Hz - 3480 / 1740 RPM
Automotive quick change - ST 16
Weight / Color - 16 kg / RAL 5012
Type of motor protection - IP 55
Any questions please feel free to email us.
