> Hp 54300A probe multiplexer loaded
Hp 54300A probe multiplexer loaded

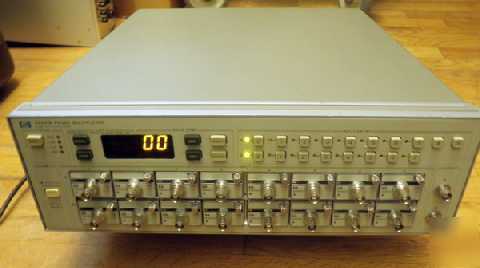

This unit is in great condition and is fully populated which is very rare.
2 x HP 54003A Probe Modules ...... 1-1, 1 Mohm, 1 QpF, +/- 2V Max (Position 0 on A and B Output)
The HP 54003A is desireable when resistance is a more significant factor than capacitance, such as in operational amplifier measurements. The mini-tip probe can be detached from the pod to provide a 1 Mohm approximately 12 pF BNC input.
14 x HP 54002A Probe Modules ..... 50 Ohm DC, 5V rms Max (Positions 1 through 7)
HP 54002A Bnc pod Should be used with terminated 50 ohm systems output from the multiplexer using this pod is less than 2db down at greater than 1GHz useful with divider probes.
* We can remove the two HP 54003A Probe Modules and populate the unit entirely with HP 54002A Probe modules upon request.
* We have additional HP 54003A Probe Modules that we can sell at an additional charge.
* We also have some 1GHz Active Probe Modules (HP 54001A) that we can sell at an additional charge.
The HP 54300A Probe Multiplexer features continuously-calibrated, independently selected variable deflection factors from 2 mV to 10 V ( 3%) & a delta voltage function. Vertical Display Modes: Channels 3 and 4 independently selected; channel 3 vs 4; channel 3 + 4; either or both channels may be inverted. Bandwidth is the same as the HP 1980. 3 digit resolution.
The Agilent HP 54300A Probe Multiplexer is a programmable, dual eight-to-one probe multiplexer designed to expand the input capability of instrumentation with 50-ohm inputs. The unique strength of this multiplexer is its configurability. The user may select from three different input pods (sold separately): two high-frequency, high-impedance probes, or a 50-ohm BNC input for terminated line applications.
The Agilent HP 54003A is ideal for delicate situations where high-frequency connections must be maintained and probes cannot be conveniently moved from one connection to another. Complex measurements can be automated by using the multiplexer's 16 inputs, switching one or two of them at a time into the test instrument, under computer control. In situations requiring more than 16 inputs, multiplexers may be cascaded in series to give a total of 128 inputs. Features full HP-IB programmability as well as simple front-panel control. It also has non-volatile memory for storing lists of switching steps. Switch lists can be advanced step-by-step from a front-panel button, over the HP-IB or for data logging applications, through a TTL pulse entered at the rear panel.
