Bristol babcock remote set regulator 9110-00A-122-120

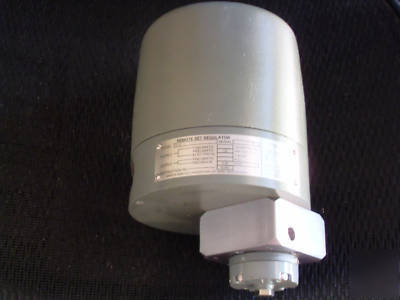

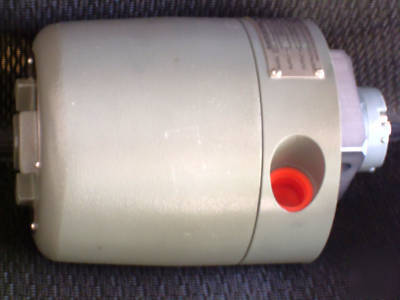

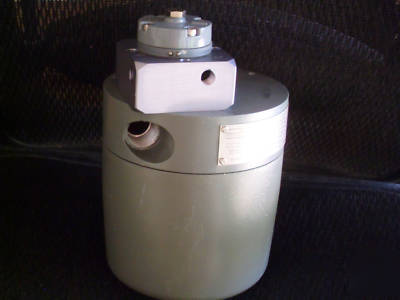

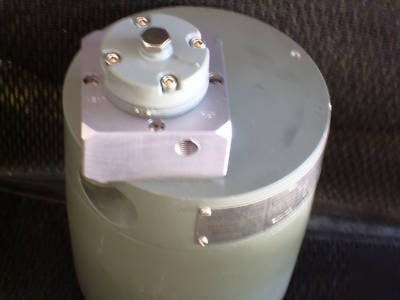

BRISTOL BABCOCK REMOTE SET REGULATOR 9110-00A-122-120

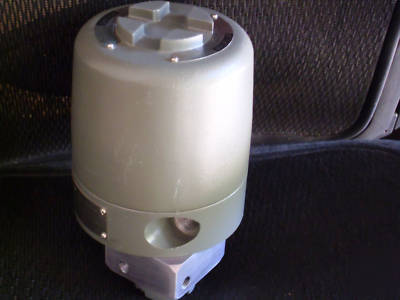

Explosion proof actuator case
*In the guard position, the drive mechanism will be
active only if the guard input signal is true.
The Bristol 9110-RSR, from Emerson Process
Management, is a bi-directional microprocessor
based rotary actuator that sets the output of a
pneumatic regulator. The output can be adjusted
electrically by either discrete (raise/Lower) or analog
inputs. These input signals to the RSR can be
received from remote or local locations either by
manual switches or automatic devices.
Series 9110-00A, Remote Set Regulators are transducer
devices that use an electrical input signal to
set the level of a pneumatic output signal. Depending
on the actual models, the output can be config-
ured for a 1-5 Vdc or 4-20 mA dc signal. For the
Raise/Lower models, the input can be configured to
accept a continuous or pulse incremental dc signal.
The pneumatic output of a Remote Set Regulator may
be specified with a 3-15, 3-27 or 6-30 psi output. All
models can operate from pressure supplies up to 100
The Remote Set Regulator is contained in a weatherproof,
explosion-proof enclosure having a detachable
threaded cover. Removal of the cover provides
access to the field wiring terminals and the programmable
Regulators are factory-furnished for 12 or 24 Vdc
supply operation. These voltage ratings are fixedand cannot be changed in the field
