Black box comm tool 1000 network tool/tester kit DT450A
Black Box Comm Tool 1000 network tool/tester kit DT450A

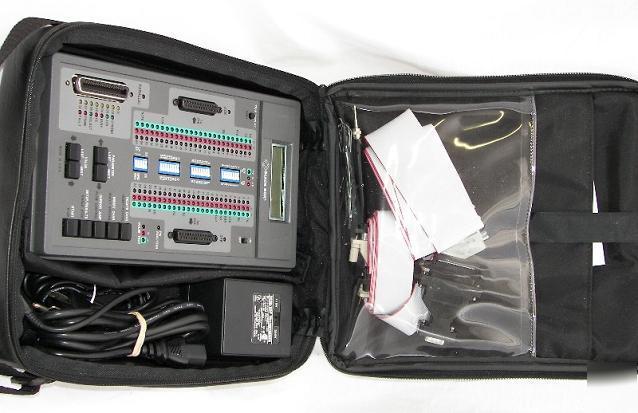

This is a complete Black Box Comm Tool 1000 Kit. The kit is complete including manual. It has been very lightly used, and very well taken care of.
Includes a DB25 dual-gender ribbon cable, 36-pin ribbon cable, power supply, and soft case.
* 4. Device Exercising. Check your printers and peripherals.
* 5. Device Simulation. The Comm Tool mimics either the host or slave, so you don t have to interrupt your mainframe or mini s processing.
* 6. Cable Testing. Isolate breaks in cable continuity and identify opens and shorts.
Configure the Comm Tool as a 25-conductor cable tester or a parallel breakout box. Dual line trapping enables you to analyze both transmitted and received data simultaneously.
Data Format ASCII, EBCDIC, Baudot, Transcode
Speed Async: 50 bps to 38.4 kbps
Interface RS-232 serial, Centronics parallel, Dataproducts parallel
Connectors (2) DB25 F, (1) 36-pin Centronics F
Indicators (100) LEDs: (50) red, (50) green; 32-character LCD
Power (3) 9-V alkaline batteries, (1) AC adapter (not intended for recharging)
Size 3.4 H x 10.9 W x 6 D (8.6 x 27.7 x 15.2 cm)
Weight 2.6 lb. (1.2 kg), including batteries
