> (50) multi turn thru hole trimpots 3/8" 100 ohms
(50) multi turn thru hole trimpots 3/8" 100 ohms
(50) Multi Turn Thru Hole Trimpots 3/8" 100 Ohms

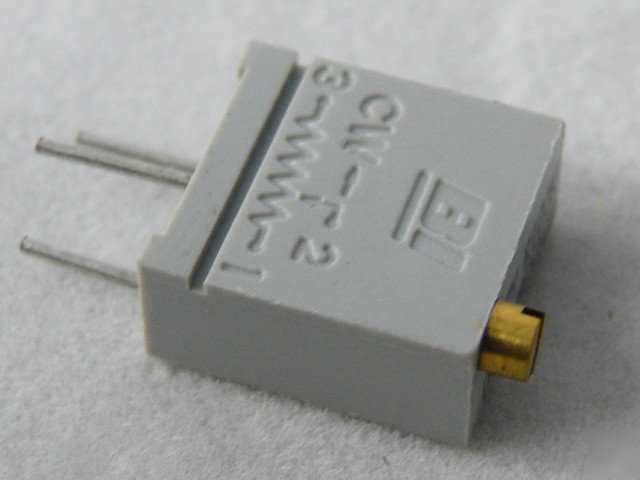

(50) New BI Technologies Multi Turn Thru Hole Trimmers.
Standard Resistance Tolerance: 10% (<100 Ohms = 20%)
Input Voltage: Maximum 200 Vdc or rms not to exceed power rating
Slider Current: Maximum 100mA or within rated power, whichever is less
Power Rating: Watts 0.5 at 85 C derating to 0 at 125 C
End Resistance: Maximum 2 Ohms
Actual Electrical Travel: Turns, Nominal 20
Insulation Resistance: Minimum 1,000 Megohms
Resolution: Essentially infinite
Contact Resistance Variation: Maximum 1% or 1 Ohm, whichever is greater
