> Lot 2 syrelec series liquid level control pump down
Lot 2 syrelec series liquid level control pump down

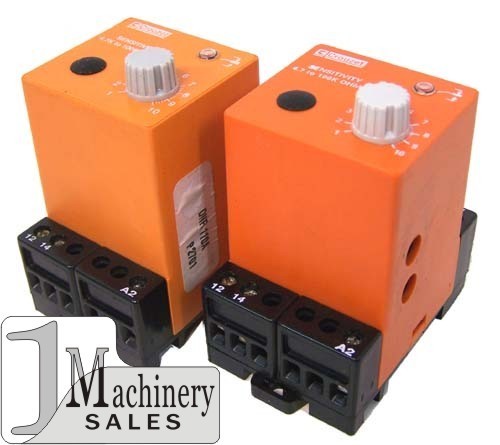

Lot 2 Syrelec NR SERIES LIQUID LEVEL CONTROL PUMP DOWN
Lot of 2 Syrelec NR SERIES LIQUID LEVEL CONTROL PUMP DOWN
The output relay energizes when the liquid level reaches the high probe. The relay de-energizes when the liquid falls below the low probe. This control can also be used with only two probes by connecting the maximum and common terminals together. The output is energized when the level reaches the low probe. In both functions, if the container is conductive, it may be used as the common probe in some applications.
Input . . . . . . . . . . . . . . . . . . . . . . . . 110 VAC ?15% (50/60 Hz)
Maximum power consumption . . . 110 VAC: 2 VA
Output . . . . . . . . . . . . . . . . . . . . . . SPDT relay
Contact material . . . . . . . . . . . . . . AgCdO
Maximum loading . . . . . . . . . . . . . 10A AC resistive 8A DC inductive
Maximum switching voltage . . . . . 250 VAC 250 VDC
Relay maximum power rating . . . . 2500 VA 80 W
Mechanical life of relay . . . . . . . . . 3 x 107 operations
Electrical life of relay . . . . . . . . . . . 2 x 105 at 2200 VA resistive load
Probe isolation . . . . . . . . . . . . . . . . Electrodes: 2000 VAC
Probe sensitivity . . . . . . . . . . . . . . 4.7 K to 100 K ohms
Probe voltage . . . . . . . . . . . . . . . . 24 VAC, 60 Hz
Probe current . . . . . . . . . . . . . . . . . 2 mA max.
Operating temperature . . . . . . . . . +14?F to 140?F -10?C to +60?C
http:// /catalog/syrelec/NR.pdf
