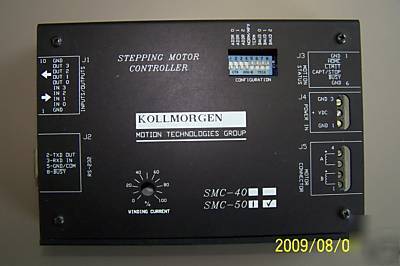

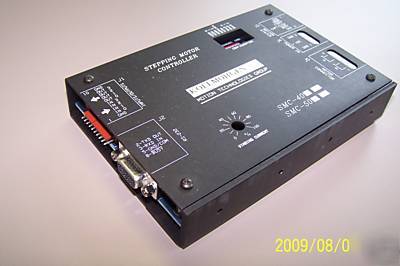

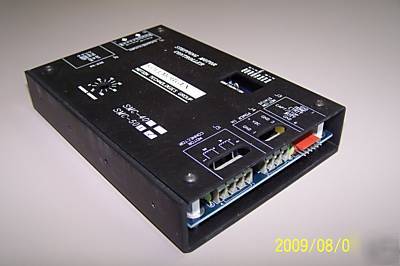

Kollmorgen programmable step motor controller smc-501
Intelligent Bipolar Chopper Stepping Motor Controller
Full Step, Half Step, Microstepping
This series step motor controller is designed to accept high-level commands via on board RS-232C- compatible multidrop port on a PC. Programming is achieved via DOS editer program disk (supplied). Features include an efficient bipolar chopper step motor output stage, general purpose inputs, general purpose outputs, home and extension limit inputs, a stop input, and a busy output line. 24 bit position registers are provided.
7 selectable resolutions ..200,400,800,1600,3200,6400, 12,800 steps/rev.
Inputs: (7 Inputs) Four programmable general purpose inputs, home and limit inputs, and the stop input. The inputs are buffered by HCMOS buffers with TTL pull up resistors.
Outputs: (5 outputs) four programmable general purpose outputs and one busy output. The outputs are open collector types.
Outstanding Features: Full, half step or Microstepping programmable motion controller. RS-232C serial interface to any PC. Powerful English like command set on board memory. Programmable inputs and outputs. Unique mode indexing feature to give high resolution and high speed at the same time
Dimensions: 6.0 x 4.13 x 1.125
Comes complete with programming manual and PC disk
