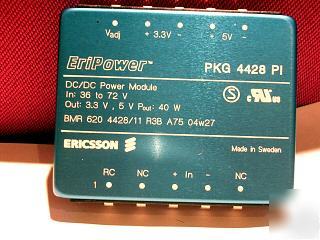

Ericsson dc/dc converter 36/72 in 3.3/5V 40W out
The PKG series, released in 1996, provides up to 60 W in single and dual output versions. Utilizing the standard EriPower PKA/PKE pinout with smaller footprint, the power density is close to 20 W/cu.in. The PKG modules can be used as on-board distributed power modules, or as building blocks for dedicated power boards. At forced convection cooling >1m/s (200 lfm), the PKG units can deliver full power without heatsinks up to +65 C ambient. By adding external heatsinking, the thermal performance can be extended further. Maximum case temperature is +100 C. Thanks to its peak power capability, the PKG series is ideal for applications where maximum power in only required during short durations (e.g. for disc drives) but small format is important. Switching frequency is a constant 510 kHz, and EMI filters are included.
THE UNITS HAVE BEEN TESTED AND ARE WORKING. THEY WERE INSTALLED BUT THEY WERE NOT RUN AND WERE PULLED FROM THE UNITS. THEY COME W/ A DOA WARRENTY. LET US KNOW IF YOU HAVE ANY QUESTIONS. THANKS FOR LOOKING
