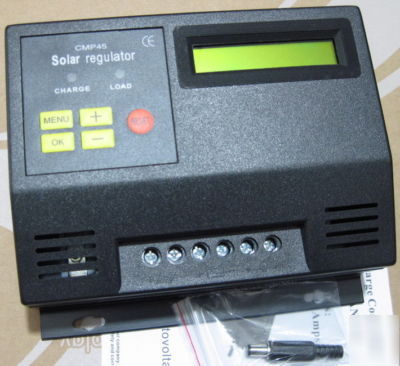

12V/24V 45A Digital LCD Solar Panel Regulator 1000W
- Rated Voltage: 12V or 24V ( Auto Switch )
- Max solar panel current: 12A, 540W/1080W
- Max battery output Current : 45A
- Over-charging Protection : 13.7V; ( X 2 24V )
- Low Voltage Cut: 10.5V; ( X 2, 24V )
- Reconnected Voltage: 12.6 V; ( X 2, 24V )
- Temperature compensation: -3mv/cell, C recognise and reset
- Dimensions: 16 x 15 x 6.3cm ( 6.3 x 5.8 x 2.5 " )
- LCD Screen dimensions: 6.4 x 1.3 cm ( 2.5 x 0.5 " )
- Work temperature : -20 C ~ +60 C
- Maintains full voltage in battery
- Prevents battery from over-charging
- Prevents battery from over-discharging
- Prevents battery from supplying electricity to solar panels at night
- Battery polarity converse-connection protection
- Solar panel polarity converse-connection protection
- Auto locking self-protection mode when current exceeds rate of controller
- Auto locking self-protection mode when short circuit occurs
- Controller will auto-separate loads from system in the event of battery low voltage
- Protection against lightning strikes
- Automatic Temperature Compensation
- LCD screen displays charge current, discharge current and battery voltage every 5 seconds
- Continuous count of charge and discharge current battery hours
- Auto set-up of charge-on/off and load-on/off voltage depending on voltage level of the battery
- Manual set-up of charge-on/off and load-on/off voltage option
Please read the manual carefully before you use our products!
3. System Connection 5
5. Fix the Breakdown 8
6. Accessory Installation 9
7. Technical data 9
The factors referring to body and property security have been considered during designed the products. But incorrect connection will cause to breakdown. For your security, please do everything according to the following regulation.
Please contact the local agent before installation, which should be guided by professional
Prevent any liquid from spattering on controller. Do not clean the controller with wet cloth
Keep children and incapacity person away from controller
Keep controller away from electrical heater, warmer and other source of heat; avoid controller under Sun.
Please check the rated voltage of solar panel, battery, and loads before connection. Their rated voltages all should be 12V (or 24V).
Pay more attention to connect the positive and negative pole among Solar panels, Battery and Loads correctly..
The diameter of connecting cable could not be smaller, which should be suited to loads.
The total rated current of solar panel and loads are kept lower than controller s rated current.
Tight and good connection among components.
Connecting wired battery positive and negative poles directly is prohibited.
CMP (30A-45A) solar charge controller is controlled by CPU, According to the voltage of battery , controller will adjust the charge current and decide if to supply the loads electricity. The following is the detailed performance:
Generally keep the battery on full voltage condition.
Prevent the battery from over-charging and over-discharging.
Prevent supplying electricity from the battery to solar panels during nights.
Reverse Polarity Protection for Battery
Reverse Polarity Protection for Solar panels
When the current of load exceeds the rated one of controller, the controller will turn into the self-protection state and is automatically locked up, the screen shows Overload .
Short Circuit happens; the Controller will turn into the self-protection state and is locked up, the screen show Short circuit .
Low voltage happens to battery, the controller will automatically separate loads from system. When the voltage of battery goes up, the loads will automatically restart to work.
Protection from the lightning strike
When Controller is normally working, the LCD Screen will show New Charging Current (a dash - before the numeral), Discharging Current and Voltage of battery every 5 seconds.
Controller is always counting Charging Current Hours and Discharging Current Hours of the Battery
When controller start up, according to the voltage level of battery, Controller will self-setup the Charging-off voltage, the Load-off voltage, the Load-on voltage. These datum is tacitly approved under the standard environment temperature 25 .
According to varies system temperature, the controller will automatically compensate the temperature of the charging voltage.
Users could setup the Charge-on or off voltage, the load-off voltage, the Load-on voltage, etc, according to their requirements.
To prevent battery from over discharging, Controller will automatically control the lowest Load-off voltage of the load, which is no less than 10V (as per 12V battery) or 20V (as per 24V battery) or 40V ( as per 48V battery) . If voltage of the battery is less than 10V (or 20V,40V ), the button - will stop working.
To recover its defaults, please keep pressing down the button Menu for over 5 seconds.
Connect + and - poles of battery with the correct ports on the controller (the third and fourth ports from the left).
Connect + and - poles of solar panel with the correct ports on the controller (the first and second ports from the left).
Connect + and - poles of load with the correct ports on the controller (the fifth and sixth ports from the left).
Correctly connect the electrodes of battery solar panels, and loads!
Choose the proper cable according to the current of the loads; the diameter could not be smaller. The cable 6m minimum is suggested!
SOLAR REGULATOR OK Battery xx.xV Charge xx.xA
Charge xx.xA MENU SOLAR REGULATOR
SOLAR REGULATOR MENU Temperature xxx OK
Temperature xxx MENU Charge xxxxxxAh OK
Check the discharging current
Charge xxxxxx Ah MENU Load xxxxxx Ah OK
Check the battery capacitance
Load xxxxxx Ah MENU Battery SOC xxx% OK
Check the charge-off voltage of battery
Battery SOC xxx% MENU Charge off xx.xV OK
Setup the Charge off voltage of battery
Charge off xx.xV Charge off xx.xV OK
Check the load-off voltage of loads
Charge off xx.xV MENU Load off xx.xV OK
Setup the Load-off Voltage of loads
Load off xx.xV Load off xx.xV OK
Check the load-on voltage of loads
Load off xx.xv MENU Load on xx.xv OK
Setup the load-on voltage of loads
Load on xx.xV Load on xx.xV OK
Adjust Charge-off voltage of Battery, Load-off Voltage of loads and Load-on Voltage of loads into the defaults
Press down MENU for more than 5 seconds
Overload Reset SOLAR REGULATOR OK
Short circuit Reset SOLAR REGULATOR OK
phenomenon Green light goes out, the loads stops working, and LCD Screen shows Battery low
Solution Charge up the battery or change the battery
phenomenon Green light goes out, the loads stops working, and LCD shows Over load
Solution Reduce the quantity of loads and then press Button Reset
Phenomenon Green light goes out, the loads stops working, and LCD Screen shows Short circuit
Reason Short circuit is happening to loads.
Solution Disconnecting the malfunction and then press the button Reset
Phenomenon Green LED is light
Battery is in constant voltage (or floating ) charged up
Solution This is the common phenomenon during nights. If it is so during days, please carefully check the connection among Solar panels, Controller and Battery.
Component near-distance thermoscope
Installation Plug the thermoscope into the socket (right side) of controller before running of controller, and then connect batter with the controller. The thermoscope will normally work after one minute. (According to the fourth Chapter-Operation, the environmental temperature of controller will be available).
Component Long-distance thermoscope
Such thermoscope is suitable to the following condition the location of battery is far away from the Controller. (please show us the length of cable between battery and controller for ordering the proper thermoscope)
12V 24VAutomatic distinguish Voltage or 48V
13.7V/12V 2/24V 4/48V Recognize tacitly rest
10.5V/12V 2/24V 4/48V Recognize tacitly rest
-3mv/cell. Recognize tacitly rest
* 45A Solar Regulator, Instruction Manual, Thermoscope
