> Brazetec 5507 silver solder (55%) 10 rods + flux
Brazetec 5507 silver solder (55%) 10 rods + flux

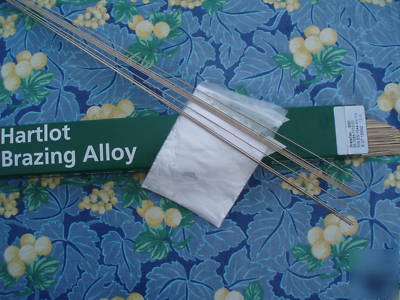

On offer are 10 rods x 1.0mm x 500mm Brazetec 5507 silver solder (55% silver) with a quantity of Brazetec D21 flux.
The specification of this alloy is DIN EN 1044 AG103
The alloy contains 55% silver, 22% copper, 21% zinc, 2% tin. Cadmium-free.
Melting temperature 620 deg C.
This is a high-quality silver solder with a silver content of 55%, The old AG14 standard, it combines high strength with a low melting temperature. Please be aware that this is a silver brazing alloy, not a soft solder.
The pack comes complete with a quantity of Brazetec D21 flux.
Multiple items attract a combined postage discount. If you purchase multiple items please wait for an invoice.
Technical Data Sheet BrazeTec 5507
Standard DIN EN 1044 AG 103 (L-Ag55Sn acc. DIN 8513)
Nominal composition [wt.-%] Ag 55; Cu 21; Zn 22; Sn 2
Permitted impurities max. [wt.-%] Al 0,001; Bi 0,030; Cd 0,010; P 0,008; Pb 0,025; Si 0,05
Melting range approx. 630 - 660 C (DIN EN 1044)
Working temperature approx. 660 C
Tensile strength acc. DIN EN 12797 with S235: 350 MPa; with E295: 430 MPa
Electrical Conductivity approx. 9,4
Operating temp. of brazed joint max. 200 C (without loss in strength)
BrazeTec 5507 is a low melting silver based brazing alloy with excellent flow characteristics. It can be
used for brazing any steels, copper and copper based alloys as well as for nickel and nickel based
alloys. It can be used for brazing with flame or induction brazing procedures.
