Bodine gearmotor, 1/16 hp, 24 volts, 3.3 amps, 8.3 rpm


New in the original box but it is out of its packing. Never used, a left over from a cancelled project.

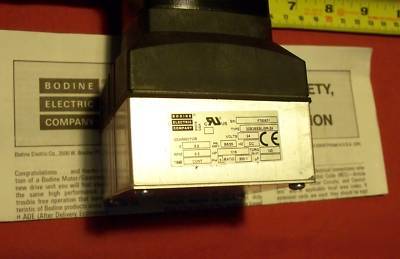

I have a photo of the motor label it says..." S/N F760631TYPE- 22B2EBL/SR-Z4VOLTS-24A-3.3INS/AMB C- B6/25HZ- DCRPM- 8.3HP- 1/16TORQ.-120 LB./IN.TIME CONT.PH -3RATIO-300:1
Website link to Bodine Electric section with the "22B/SR-D and 22B/SR-Z Series INTEGRAmotor Parallel Shaft BLDC Gearmotor"
http:// /Asp/ProductSeries.asp?Context=16&Name=22B/SR-D%20and%2022B/SR-Z%20Series%20INTEGRAmotor%20Parallel%20Shaft%20BLDC%20Gearmotor
http:// /Asp/ProductModel.asp?Context=16&Name=22B/SR-D%20and%2022B/SR-Z%20Series%20INTEGRAmotor%20Parallel%20Shaft%20BLDC%20Gearmotor&Model=N3837&Sort=11304
It gives Bodine's selling points and specifications for this series of motor. Not exactly number to number but this is an older model. New and never used.

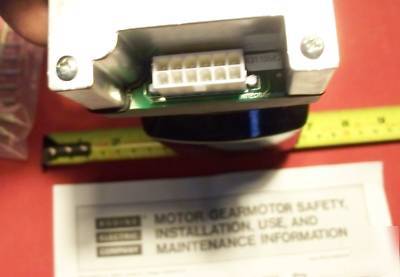

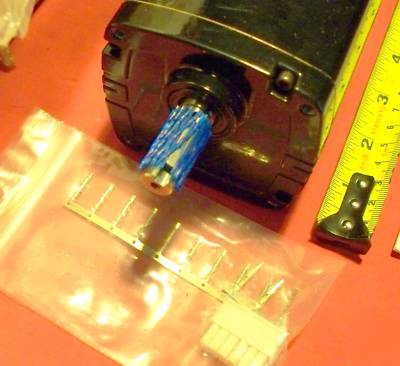

There is a safety sheet and matching plug for the back of the motor with it.
