Tektronix 7S12 tdr w/ sampler plugin
Tektronix 7S12 TDR w/ Sampler Plugin

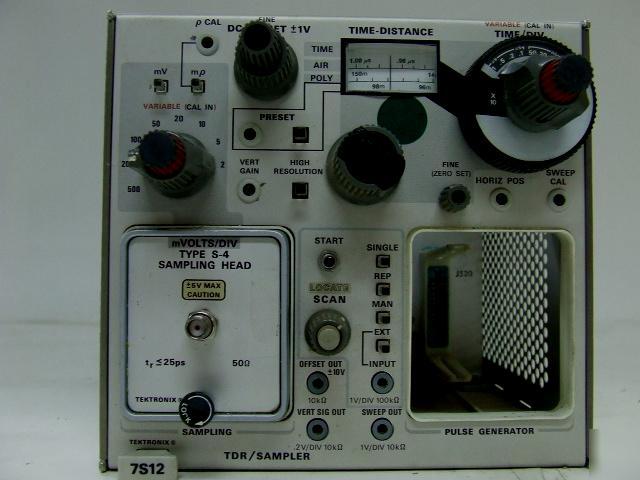

The 7S12 TDR/Sampler with Sampling Heads Plug-in has vertical scales calibrated in mp (reflection coefficient 0.001) and mV from 2 to 500 units/div in 8 steps. The unit has a tape dial of 4900 ft, 490 ft, 49 ft (air dielectric); 3200 ft, 320 ft, 32 ft (polyethylene dielectric); and 10, 1, and 0.1 s (time). The unit also provides time/division settings of 20 ps to 1 s in 1-2-5 sequence.
The S4 Sampling Head has a 25 ps risetime, DC to 14GHz, 50 ohm input impedance. Variable DC Offset allows signals between +1 V and -1 V limits to be displayed at 2 mV/div. Displayed noise is >/= 5 mV unsmoothed, 2.5 mV smoothed (includes 90% dots)
