Tektronix 155-0241-02 U800 hor out ic 2445B 2467B 2465B
Tektronix Custom IC 155024102 Horizontal Output Amplifier for all 2400 series Oscilloscopes, 2445 / 2465 / 2445A / 2465A / 2467 / 2445B / 2465B / 2467B
These ICs have been removed from Fully working instruments, and their performance was verified afterwards in a 2465B test Oscilloscope, IC will be supplied with a high quality Augat IC socket and a special cooling heat-sink, Heat-sink can be mounted on top of the IC using thermally conductive epoxy

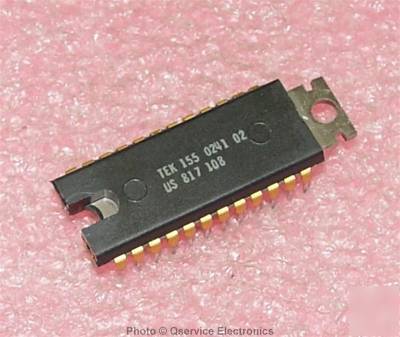

( EPOXY NOT SUPPLIED ) Please examine the high resolution picture below
Please DO NOT SOLDER the chip directly to PCB
U800 2400 Series Horizontal Drive
CLICK ON THUMBNAILS FOR HI RESOLUTION IMAGES
Listing is for one 155024102 IC + Socket + Heatsink
ONLY THE ITEMS SHOWN IN PICTURES ARE SUPPLIED
QSERVICE WILL GIVE YOU ONLY 100% TESTED - GUARANTEED INSTRUMENTS
TESTED AND CORRECTLY DESCRIBED TO ACCURATELY AND EXTENSIVELY REFLECT CONDITION / WORKING STATUS
CRT'S - HYBRID ICs - MECH ASSEMBLIES - ic PARTS - icS - HARDWARE
All NEW / NOS ( New Old Stock ) OR USED PARTS OR INSTRUMENTS
TAMPERING - REMOVING OR DEFACING THE WARRANTY STICKERS
