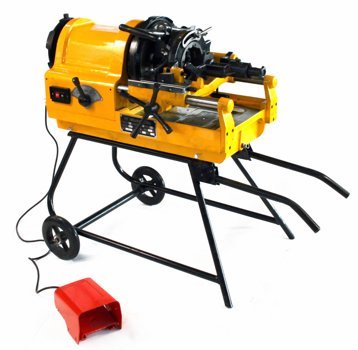

Sdt 6790 4" power pipe threading machine w / reverse
With Cart / Foot Pedal / Reverse Motor / 3 Sets Dies
This Industrial Quality Affordable Pipe Threading Machine is used for Threading, Cutting, and Reaming various sizes of Water, Electric, and Gas Pipes ranging from -4 Inches NPT. This machine is Comparable Quality to the Wheeler Rex 6790.
A Heavy Duty Steel Powder Coated Cart makes it easy to transport you machine around the shop, jobsite, or factory. The Solid Rubber Tires will not go flat like pneumatic tires and will last for decades.
The built in Oiling system is Geared to ensure long life to your dies and oiling system.
Industrial Strength Removable Foot Petal allows the operator to easily control the RPM s of the Motor and makes it easier to move.
Universal Alloy Steel Dies are included.
* -4 Pipe Threading Machine
* Heavy Duty Foot Petal with attached plug
* -3/4 and 1"-2" Universal Die Head
* (set of 4) Alloy Steel Pipe Dies -3/4 NPT (14 threads/inch)
* (set of 4) Alloy Steel Pipe Dies 1 -2 NPT (11-1/2 threads/inch)
* (set of 4) Alloy Steel Pipe Dies 2-1/4 - 4 NPT (8 threads/inch)
* Heavy Duty Steel Cart with Solid Rubber Tires
* Heavy Duty 0-4 inch Pipe Cutter
* Heavy Duty Five Spade Conical Reamer
* Container of Threading Oil
* Tool Kit with Case including Wrenches, Oil Can, and Screwdriver
* Electric Motor : 2 Speed 60hz Heavy Duty 110 volt 750 Watt
* Die Rockwell Hardness (HRC) 58-62
* Maximum Rotation Speed: 24 RPM
* Maximum Chuck Capacity: 4.925 inches or 125mm
* Sledge Travel: 7 inches or 180 mm
* Dimensions: 36 (L) x 22 (H) x 17 (D)
