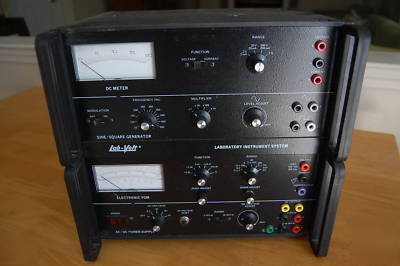

Lab-volt 438 lab system: wave generator, vom, dc meter
Nice clean Lab-Volt 438 Labratory Instrument System. Very little wear, guaranteed against DOA.
The Lab-Volt Model 438 Instrumentation System is a general-purpose instrument module consisting of a DC meter, sine/square wave generator, electronic volt-ohm-millimeter (VOM) and AC/DC power supply. Comes with power supply cord, but no leads or manuals.
Both the electronic VOM and DC meters have easy-to-read scales and provide simulataneous measurement of voltage and current. Each instrument is fully protected against improper voltage and current connections. All minus and common jacks are isolated from the chassis.
The sine/square wave generator has separate outputs to supply both wave shapes simultaneously. The frequency is selectable in four ranges from 50 Hz to 500 kHz. The sine wave output is continually adjustable from 0 to 6.0 Vp-p. A fixed, 1 kHz signal is switch-selectable for 50% internal modulation of the sine wave.
The AC/DC power supply is a fully protected source for four switchable AC voltages and two continuously adjustable DC ranges. An illuminated switch controls power to the entire instrument system
Lab-Volt datasheet with specs and dimensions here: http:// /downloads/datasheet/dsa438.pdf
