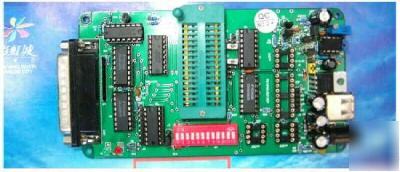

USB Dual Power Universal Willem EPROM Programmer
* Programmer hardware design is based on Willem Programmer
* Use PC USB Port or 12V AC/DC power adapter as power source
* VPP votage can be adjusted continuous ,it is important for programming to some chips.
* Best for updating & repairing PC motherboard and addon card BIOS.
1. Dual Power Willem EPROM Programmer
5. Adapter mini TSOP32 (8mm,14mm)
TSOP32 socket adapter 8X14mm for 39SF040 39VF040
27C64, 27C128, 27C256, 27C512, 27C010, 27C020, 27C040,27C1001
2764, 27128, 27256, 27512, 27010,
28C65,28C64, 28C128, 28C256,28C512, 28C010, 28C020, 28C040
(Adapter or Jumper) 28C16,XLS2816 (DIP24)
28F64, 28F128, 28F256, 28F512,28F010, 28F020
MX26C1000, MX26C2000, MX28F1000, MX28F2000
Am28F256A, Am28F512A, Am28F010A, Am28F020A (New command erase/prog.)
i28F001BX, 28F004, 28F008, 28F016
29F64, 29F128, 29F256, 29F512,29F010, 29F020, 29F040, 29F080
29F001,29F002, 29F004, 29F008, 29F016, 29F032
24C02,24C04,24C08,24C16, 85C72, 85C82, 85C92
24C32,24C64,24C128,24C256,24C512
<- Data 8bit -> (pin 6 ->ORG. [Schematic connect to GND])
93C06, 93C46, 93LC46, 93C56, 93C57,
93C66, 93C76, 93C86 (8bit), AT59C11, AT59C22, AT59C13
CAT35C102, CAT35C104, CAT35C108 (pullup pin7)
<-Data 16bit-> (pin 6 ->NC [No Connect])
93C06A ,93C46X,93C56,93C66,93C76,93C86 (NS)
16C84, 16F84, 16F84A ,16F627/16F628
12C508/A, 12C509/A, 12CE518, 12CE519, 16C505
16C620 16C621, 16C622, 16CE623, 16CE624, 16CE625, 16C710/711
16F870, 16F871, 16F872, 16F873, 16F874, 16F876, 16F877
PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A
AT29C256, AT29C512,AT29C010A, AT29C020, AT29C040,AT29C040A
W29EE512,W29EE011, W29EE012, W29C020(128),W29C040
ASD AE29F1008 (AT29C010), AE29F2008 (AT29C020)
Ver 0.992 up(DOS). Can run under win9x
(disable prog. CPUIdle or CPUCool)
Command seq. 5555/AA, 2AAA/55, 5555/A0
AT49F512, AT49F010, AT49F020, AT49F040
SST39SF010, SST3S9F020 ,SST39SF040
Command seq. 555/AA, 2AA/55, 555/A0
Am29F512, Am29F010, Am29F020, Am29F040,HY29F080
Serial Peripheral Interface (SPI)
[Atmel] AT25010,020, 040 (A8-A0)
AT25080, 160, 320, 640, 128, 256 (A15-A0)
[ST] W95010....256, Microchip 25x010 - 25x640
25C080,25C160,25C320,25C640,25C128,25C256,25C512
- CAT64LCxxx (16bit DATA IN/OUT) use Socket 93Cxxx
CAT64LC010, CAT64LC020, CAT64LC040
DS1220,DS1225Y, DS1230Y/AB, DS1245Y/AB, DS1249Y/AB
6116, 6264, 62256, 62512, 628128
W27E512, W27E010, W27C010, W27C020, W27C040
SST27SF256, SST27SF512, SST27SF010, SST27SF020
Vcc = 3.3-3.6V SST37VF512, SST37VF010, SST37VF020, SST37VF040
AT89S8252 (8K+2K), AT89S53, AT89LS8252,AT89LS53
AT89C1051,AT89C2051,AT89C4051 (20pin)
AT89C51RC (32KB), AT89C55WD (6.2V)
i8xC51,i8xC52,i8xC54,i8xC58 (tWP = 100uS*25 Pulse)
(read,write,erase,verify,checkempty,Lockbits ,Fusebits) [Flash memory/EEPROM]
Function Lockbit read AT90S2313 Errata Sheet.pdf
P8048AH, P8049AH,P8050AH, P8042AH Vea = 12V
D8748,D8749,D8742,D8741, D8742 Vea = 18V
Am29F400,Am29F800,29F160,29F320 (read,write byte mode)
HY29F200, HY29F400, HY29F800 , AT49F2048A, AT49F4096A, AT49F8192A
27C1024 (27C210), 27C2048 (27C2002), 27C4096 (27C4002),
by use Resister pull up Data Bus (0xFF), A0 select low or high byte)
EPROM 16bit (DIP42) (4-32Mbit)
M27C400(DIP40), 27C800, 27C160, 27C322
29LV200, 29LV400,29LV800,29LV160,29LV320 (read,write byte mode)
Adapter Firmware Hub/LPC (PLCC32) (PP mode) (3.3V)
82802AB, 82802AC, AT49LW040, AT49LW080
SST49LF002A, SST49LF003A, SST49LF004A, SST49LF008A
Adapter mini TSOP32 (8mm,14mm) support :
sst 39sf040 , sst 39sf020 , sst 39vf040 ,
sst 39vf020 and so on ,mini tsop 32 package
Note: to Netherland will use Airmail , the EMS can not reach Netherland .
