Vacuum table VT6040 cnc engraving milling clamping
High flexibility due to an aluminium surface with additional clamping threads
The vacuum clamping table for wet and dry machining
NEW! NEW! > Visit our Online Shop. < NEW! NEW!

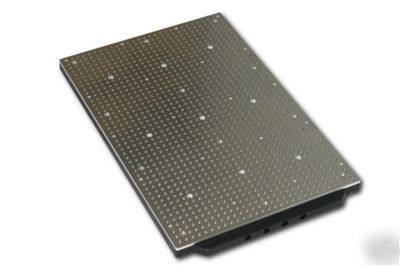

This vacuum table represents a combination of highly efficient processing with top-class materials The cover plate consists of massive aluminium, the base plate from hard PVC. This makes for an extremely rigid sandwich construction that has many advantages.
Workpieces can be clamped by using additional clamping threads that one could not otherwise be clamped with a vacuum table. To do this, you can remove the suction nozzle from the clamping hole and an M6 thread is then freely available. After work has been completed, the suction nozzle can be screwed in again and the hole reset to its original position.
The ideal solution to clamp almost all materials that are processed by manual means on CNC machines or automatically. Typical areas of use are electronics, electrical engineering, sinking, model making simply every form of machining. No matter whether on CNC milling machines, surface grinding machines, laser cutting machines or simply when used in measurement engineering. In contrast with a magnet clamping plate, non-magnetic materials such as aluminium, brass, copper or plastic sheets can also be clamped here.
Operation can be completed via practically every vacuum pump. Attempts with a normal vacuum cleaner promise great success; a connecting adapter is included in the delivery contents.
The retention force is proportional to the covered area, the friction coefficient and the differential pressure.
A sintered rubber mat is included in the delivery contents with the aim of raising the friction coefficient.
At the same time, this is used to protect the vacuum plate, if workpieces are milled through. Sintered rubber mats are wear parts and are inexpensive to purchase.
This vacuum plate allows for wet processing with non-detergent cool lubricants customary in the trade. However, one should ensure that in a case where a significant amount of fluid is used, a liquid separator which can be delivered as an option, is used between table and vacuum pump
The vacuum plate should be dressed after assembly in order to achieve the greatest possible degree of accuracy in this clamping. For this reason it is useful to choose a vacuum table that is a little bit smaller than the machine s traverse path in order to be able to dress as far as the edge Of course, we also deliver pre-dressed vacuum tables on request.
Here are the key advantages at a glance:
Use of high-quality materials resulting in high long-term stability Wet processing is not a problem. Significantly lower default than for pure synthetic vacuum tables.
Multifunctional vacuum plate, dowel pins can be set which allows for smooth reproducibility in the case of mass production
Additional M6 clamping threads offer a maximum of flexibility.
Very low height of only 21mm, therefore no unnecessary operating range losses for the Z-axle.
Sintered rubber mats or sintered rubber mats that are permeable to air (with homogenous microporous surface) to be received as accessories
Exchangeable vacuum plate, in case a fault occurs, it can be simply repaired.
Optimal vacuum distribution through intricate ducts inside the vacuum chambers.
High air turnover through generous fitting of the connections.
Measurements: 620 x 420 mm x 21 mm
Effective surface: 600 x 420 mm
5.6 kg (quality has its weight)
The contents of delivery include:
1 cover rubber mat to cover gaping holes
You will receive a guarantee of two years from the date of purchase with this table. Excepted are mechanical defects that are the result of faulty processing. As a commercial manufacturer, we shall issue an invoice with an amount for VAT.
We stock a variety of different vacuum tables that are temperature-controlled on request The largest vacuum table that we have manufactured thus far had an area of 8000 x 1000 mm; the thickest massive aluminium table was 80 mm. Vacuum tables made from Metapor for clamping particularly thin materials of varying granularity can be selected Many of our facilities are currently being used in paper restoration
Vacuum tables from annealed steel will be shortly deliverable; these are particularly well suited to machines with magnet clamping plates.
Our daily business involves constantly working on new technological solutions to problems. Customisations are a pleasant way of distancing oneself from discounters in the Far East.
Should this vacuum table not satisfy your requirements, please do not hesitate to contact us directly.
