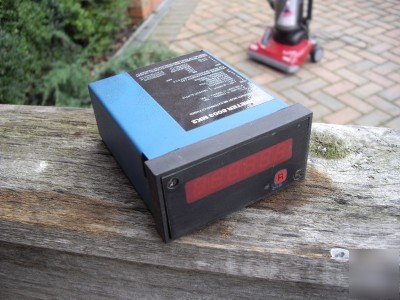

Trumeter 8003 MK2 electronic totaliser
DETAILS TAKEN FROM WEBSITE AS FOLLOWS AND MAY OR MAY NOT ALL CORRESPOND TO THIS ITEM
6 DIGIT 10 mm LED MULTI-MODE TOTALISING COUNTER WITH OPTIONAL BCD OUTPUT AND INTERNAL SCALING
This is a 6 digit totalising counter housed in a rugged steel case (DIN 43 700 48x96).
The front panel features a 10mm high LED display and sealed membrane with integral reset pushbutton.
Front sealing to IP65 is possible using the panel mounting gasket supplied.
Connections are made to the rear of the unit via plug-in finger proof screw terminals each accommodating two 2.5mm2 conductors.
The rear panel carries a 6 pole DIL switch for mode, input and decimal point selection.
The unit is AC mains powered and will operate from 230V or 115V at 50Hz or 60Hz.
Typical applications: piece part counting, length, position counting, production line.
PRE-SCALER: Adjustable for multiplication factors (Xn) of between 0.010 and 9.999.
Allows calibration of digital display in the required units.
With the pre-scaler set at unity or above the maximum count frequency is 250Hz for both uni-directional and bi-directional counting.
Below unity the following formula applies: Fmax=250/Xn or 1kHz whichever is the lower.
* 6 digit 10mm LED display with leading zero blanking and decimal point adjustable up to 3 places
* Selectable uni-directional (add or subtract) or bi-directional (quadrature) modes
* Remotely activated count inhibit facility
* Facilities for remote reset and remote disable of manual reset push button
* Slow and fast input options on both count and direction inputs
* All inputs opto-isolated and are compatible with NPN (sink) and PNP (source) sensors and shaft encoders
* Rechargeable battery backup to maintain count in the event of power failure up to 200 hours
* Auxiliary 12VDC (unregulated) 100mA power output to drive input devices
* Optional multiplying pre-scaler permits calibration of display in the required units
>200 hour reserve, 50 hour recharge from fully discharged state
6 digit high brightness red LED with leading zero blanking, 10mm character height
Optically isolated. selectable sink or source. Maximum input voltage 30VDC. Input impedance 1K8 Ohm
Bi-directional: Quadrature A,B.
Uni-directional: Input A = Count; Input B = Direction
10kHz maximum, 50 S minimum pulse length 5kHz quadrature (2 signals 90 out of phase), 100 S minimum pulse length
30Hz de-bounced, 15mS minimum pulse length
External reset, count inhibit, manual reset disable: contact closure or solid state, 15mS minimum pulse length
1x3 way and ice way terminal blocks (numbered 1 - 11) with wire clamps. Each accommodates 2 0FF 2.5 mm2 conductors
IP65 when properly mounted with panel mounting gasket supplied
