Precision planting eset pro series vacuum kit planter

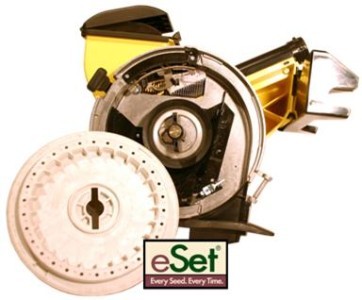

Precision Planting eSet Pro Series Vacuum Kit 720136
Precision Planting eSet Pro Series Vacuum Disk Kit
This eSet Pro Series kit includes DVD and Paper Instructions and tools you'll need for installation.
The most frustrating thing about current vac disks is that you are always guessing about your vac setting. Too little and you skip. Too much and you double. But your monitor only shows you an average population so you can t judge accuracy until your seed emerges.
With eSet, you set your vac for about 15 and you can plant any seed even plateless at 98.6% accuracy or better. If you seed is over 60# per 80,000 seed bag, use 18 . Size, weight, shape, treatments, humidity . . . doesn t matter. And unlike early flat disk designs, you don t adjust this singulator. It is designed to float and self correct so it is always in the right place at the right time.
The right release for the right spacing.
We ve learned that a lot of the spacing problems you ve had with your vac disk comes from poor seed release off the disk. Celled disks force the seed to move horizontally before falling toward the seed tube. That means that vac shut off, static and seed position in the cell can alter the timing of the release. And inconsistent release timing means the seed tube ride is inconsistent . . . which means spacing is inconsistent.
eSet eliminates poor release in two ways:
* No cell. Seeds ride on a flat plate so when the vac is cut off, seeds release straight down.
* Raised platform. We ve moved the seed release point over so seeds are released right down the center of the seed tube. That means a more consistent seed tube ride and more consistent spacing.
The raised platform on the new eSet vacuum disk is not sensitive to seed size or shape. And seeds release directly down the center of the seed tube. No adjustments of vac or singulator are needed for top-notch singulation.
With the ProSeries meter version of eSet you receive this new hopper design. It reduces restrictions from the central fill hopper and eliminates meter overfill problems.
This new eSet disk has four major advantages:
* Singulate any seed size or shape there s no pocket or cell, which means the disk is not seed sensitive.
* Improved seed release the raised platform means seeds release down the center of the seed tube minimizing seed tube ricochet.
* No adjustments you get 98.5%+ singulation on almost every seed type without adjusting vac or double eliminators.
* Better seed agitation seed treatments can inhibit singulation because seeds pack together at the bottom of the meter. eSet has aggressive seed agitation that keeps the seed pool fluid for better loading.
eSet means Every Seed Every Time. Judging from our side-by-side tests using 21 different kinds of seeds large, small, flat, round, treated, untreated eSet lives up to its name!
What are the key benefits of the eSet Vacuum System from Precision Planting?
We ve all waited years for a vacuum system that allows you to set your vacuum once and plant! Now you can finally choose your seed based on genetics and have the confidence that your planter will plant whatever seed size and shape comes with the genetics. Simply set your vacuum at 15 for seeds under 60 lbs./bag or 18 for any larger seeds. Set it and forget it!
eSet additionally provides you with a 5-lobe, spring-loaded singulator that always floats in the right position to dislodge doubles of any seed size or shape. Aggressive agitation fins keep your seed pool fluid, and the raised platform on the eSet disk consistently delivers seed down the center of the tube every time.
How many holes are in the eSet disk?
The eSet corn disk follows a standard 30-hole configuration.
How does eSet work planting soybeans or other specialty crops?
All you need to do is snap your small eSet brush into the correct position, lock the singulator back and lower the seed deflector. Then just swap your manufacturer s bean or specialty disk with the eSet corn disk, close the lid, and plant! And since your planter s vacuum setting is determined by your disk selection, you are able to use the same vacuum settings across all your planter rows once you ve reset the vac pressure for your specialty crop.
What s the difference between the Standard eSet and the Pro Series eSet?
Your meter type determines which eSet configuration is right for you. Our Standard eSet model fits all John Deere planters after 1991, except the new central-fill planters with the mini-hopper boxes. These planters have a different housing Deere calls this a Pro Series meter. This requires the Pro Series eSet.
Does eSet require any other modifications or updates to my planter?
If your current planter vacuum gauge only goes up to 15 of vacuum, you may want to update your gauge to a 20 capacity since the eSet requires 15 of vacuum on standard seeds (less than 60#/bag) and 18 of vacuum for larger seeds. You may order this replacement Magnehelic Gauge from Precision Planting. Your MeterMax representative can recalibrate your 15 gauge so that it will allow up to 18 of water.
How difficult is it to achieve the 15 or 18 of vacuum required to run the eSet?
Most newer tractors and planters are able to achieve these higher vacuum requirements without any problem. The following chart summarizes our experience achieving eSet s higher vacuum requirements:
(New = hydraulic capacity of 2700+ psi; ie. JD 7000 or 8000)
Do you recommend using graphite on the back of the eSet disks?
Each eSet disk has a coating of graphite applied to the back to help maintain superior performance through the season. If needed, you can apply a thin coat of graphite to the back of the eSet disks before each season to ensure its smooth and efficient operation.
Why should I still get my meters calibrated on a MeterMax Test Stand when I m using eSet?
Your planter meters are the single most significant part of a precision planting system. Our MeterMax representatives are trained and equipped to give you the assurance you deserve when your yields are on the line. And since we frequently email our MeterMax team with product updates, field reports, and other important information that will help you get the performance you expect, it s worth your time to tap into your local resource of Precision Planting knowledge by having your meters calibrated to your specific seed size, shape, and treatment. Your MeterMax representative will be able to double-check your eSet installation, the condition of your seals, and provide in-season support.
Is the eSet system from Precision Planting similar to any other vacuum systems on the market?
eSet is an exclusive and patent-pending product from Precision Planting, Inc. No other company offers a vacuum solution that combines all the features of a flat elevated plate with strong seed pool agitation. This 2006 season is the first year of production on this revolutionary product that allows you to set your vacuum at one setting and plant. There may be some confusion regarding the Accu-Vac disk that has been out for three seasons or the John Deere Sweet Corn disk. The design and performance of the eSet system is completely different than the AccuVac and Deere products.
What is the expected life of the replacement parts in the eSet vacuum system?
You will want to check your eSet brushes and seals before each season to make sure that the bristles are in good shape and the seals are soft, flexible, and providing a good tight seal, especially in the seed release section of the meter. Also check all the other parts, including the eSet disk, for noticeable wear or corrosion. The areas to watch are the holes on the disk and the lobes of the singulator. Replacement parts are available from Precision Planting or your local MeterMax representative. Please call for pricing and details.
How does eSet work without a Knock-Out Wheel?
The eSet vacuum system is equipped with a seed extractor that grabs the seed (or fragments of seeds) on the front side of the disk and lifts and pulls them out of the holes after the vacuum is released. And since the eSet singulator is spring loaded not rigid like other competitive products seeds won t be sheared off and left plugging the holes in the disk. These engineered parts eliminate the need for a knocker, and allow eSet to live up to its name even in the most difficult of seed conditions.
How does eSet affect the planter manufacturer s warranty of my meter housing and vacuum system?
While the installation of the eSet components requires drilling one hole in the manufacturer s housing, nothing related to the eSet vacuum system affects your manufacturer s warranty. The higher vacuum requirements are also well within manufacturer s specs for the blower and hosing system.
Is it possible to update a Standard eSet to a Pro Series eSet if I m planning to switch to the new John Deere Pro Series planter in the future?
Yes. You simply need to purchase a Pro Series Update Kit that allows your standardized singulator, disk, and short brush to work inside your new Pro Series meter. Call Precision Planting for pricing and availability.
Is it possible to manually modify the eSet disk by adding or plugging holes for specialty uses, etc?
Due to the honeycomb mold design on the back of the eSet disk and the height of the disk, it is very difficult to manually add holes into the eSet disk and hold equal vacuum pressure around the circumference of the disk. However, this same honeycomb mold design does serve well if you want to use glue on the backside to plug holes and increase the distance between plants in the field.
How particular is the exact vacuum settings for eSet?
eSet is less particular to exact vacuum level than JD celled disks so any problems related to vacuum consistency should be less significant with your new eSet system than before. However in variable or unstable vacuum conditions, error on the side of the higher vacuum setting, and trust the eSet singulator to eliminate extra doubles.
What recommendations do you have for seed lubrication when using eSet?
To achieve maximum performance with your eSet system, we recommend using -cup of a mixture of talc (80%) and graphite (20%) per bag (80,000 kernel unit) of seed (1 cup per hopper of seed assuming 2 bags per hopper) and stir to mix as evenly as possible. Adjust this rate as necessary to prevent excessive accumulation of talc in the bottom of the meter and hopper while ensuring that all seeds are coated with talc. For seeds larger than 60 lbs / 80,000, cut the rate of application to 1/8th cup per bag. Certain seed coatings or humid planting conditions may require the rate to be increased. Bulk quantities of this pre-blended lubricant are available from Precision Planting starting March 2006. If you are not able to use this blended mixture, -cup of talc (100%) per unit/bag is encouraged.
Installation Instructions and Operating Guidelines
http:// /eset-vacuum/operating.shtml
These parts are Original Precision Planting Equipment!!
