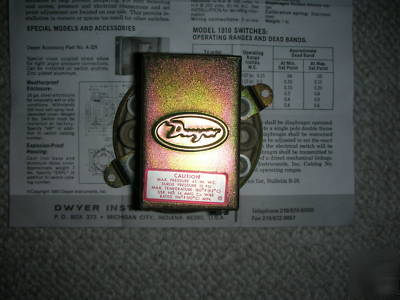

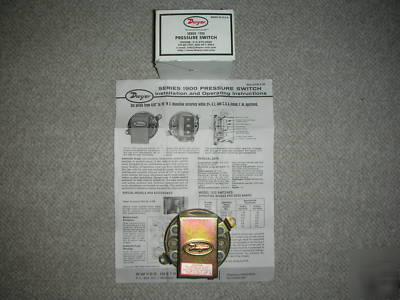

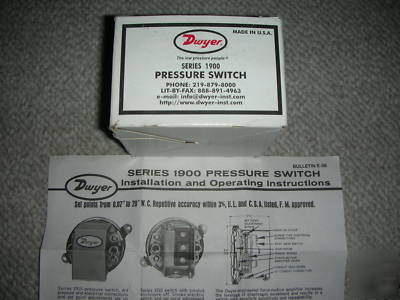

Dwyer 1910-1 differential pressure switch
1PC - DWYER 1910-1 DIFFERENTIAL PRESSURE SWITCH
APPROX DEADBAND @ MIN. SET POINT 0.15, APPROX. DEADBAND @ MAX. SET POINT 0.16 MAX PRESSURE 45W.C.
SERVICE: AIR AND NON-COMBUSTIBLE, COMPATIBLE GASES
-TEMP. LIMITS: -30 TO 180F(-34 TO 82.2C)
- PRESSURE LIMITS: 45"W.C.(11.2kPa) CONTINUOUS, 10 PSIG(68.95 kPa) SURGE
- SWITCH TYPE: SINGLE-POLE DOUBLE-THROW(SPDT)
- ELECTRICAL RATING: 15A @120-480VAC, 60HZ. RESISTIVE 1/8HP @ 125VAC, 1/4HP @ 250VAC, 60HZ DERATE TO 10 A FOR OPERATION AT HIGH CYCLE RATES
- ELECTRICAL CONNECTIONS: 3 SCREW TYPE, COMMON, NORMALLY OPEN AND NORMALLY CLOSED
- PROCESS CONNECTIONS: 1/8" FEMALE NPT
- MOUNTING ORIENTATION: DIAPHRAM IN VERTICAL POSITION. CONSULT FACTORY FOR OTHER POSITION ORIENTATIONS
- SET POINT ADJUSTMENT: SCREW TYPE INSIDE CONDUIT ENCLOSURE
- AGENCY APPROVALS: CE, UL, CSA, AND FM. OPTIONAL EXPL EXPLOSION-PROOF ENCLOSURE DOES NOT POSSESS ANY AGENCY APPROVALS
