Ballscrews, 4 , linear motion, actuator, robotics, cnc

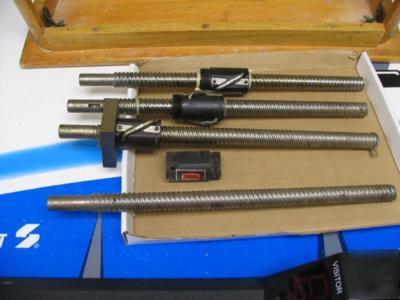

For Sale is a set of Warner Electric Ballscrews that were originally used for Automated Parts Loaders.

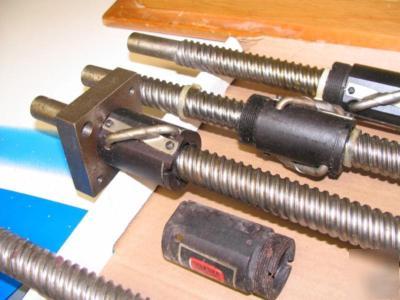

There is a total of four pieces. One looks unused. Two look used but appear to be in good shape and the ball nut turns freely.
The last one is in 2 pieces and I do not have the balls or return tubes for it. One of the ballnuts has a mating square flange that
Stamped on the ball nut is Warner Electric R-1001. I believe the lead is 1 and the diameter of the ballscrew is also 1
The other info was gathered using a digital caliper with 2 digits to the right of decimal point accuracy
Or a tape measure for the overall lengths:
Ballscrew Data : Length of Threaded portion : 16.25
Diameter of Threaded Portion : .970

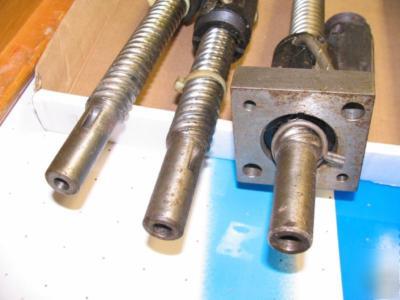

Mounting Shaft Diameter : .78
Mounting Shaft Keyway : .180 wide
Mounting Shaft Keyway .670 long rounded not square
Ballnut Data : Diameters on flat sides : 1.5
Diameters on round sides: 1.69:
Length of Thread : 1.17 w/.7 relief
Diameter of threaded Portion : 1.94
2 holes .410" diameter. Note: I am not a machinists
2 holes .220" diameter Note: I am not a machinists
