Automatic feed attachment for compact 5 lathe

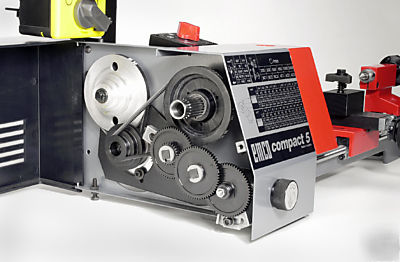

Item 200300 Automatic feed shown in pic fitted to Compact 5 lathe ( lathe not included!)

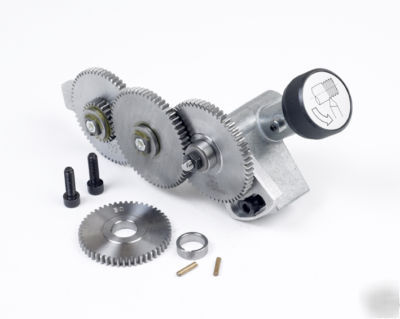

Consists of quadrant with 6 steel change gears and clutch for 2 longitudinal feeds 0.07 and 0.14mm per
Also you can cut 5 Metric threads 0.4,0.6, 1.0, 1.25 and 1.5mm pitch
To cut a full range of Inch and Metric threads you need the additional chnage gear set ( our part no 200200)
