Achi ir-3000 dark infrared bga xbox rework station

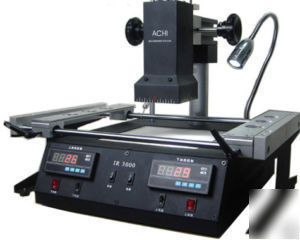

ACHI IR3000 BGA Rework Station is composed of upper part of Heating
Components / Bottom Preheat Module / Bracket / Temperature Control Parts !
Temperature control Table is control the upper and lower heating ,Can Simultaneously
heated or First preheat ,then the upper part of heating.
8. Highly Sensitive K-temperature sensor
The parameters of IR3000 BGA Rework satation
Dimension: L 475mmxW480mmxH420mm
Total weight: About 17 kg, vary with the differen need of the users
Size of Upper heating:80mmx80mm
Consumption of upper heating: 500W
Size of Bottom heating:180mmx180mm
Consumption of Bottom heating: 800W
Control mode of Upper: Iindependent temperature control, high-precision closed-loop
control, precision 0.5%, Alarm
Control mode of Bottom: Iindependent temperature control, high-precision closed-loop
control, precision 0.5%, NO Alarm
SMD: Suit for welding,remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI metallic shield product and solder/lead free Rework,welding.
Size of applicable chips: 70mmx70mm
Size of applicable PCB: 400mmx305mm
