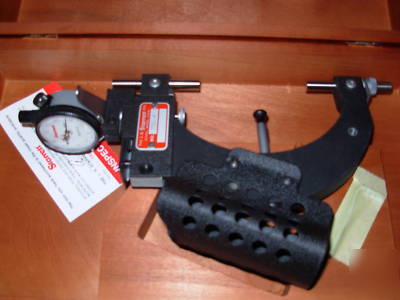

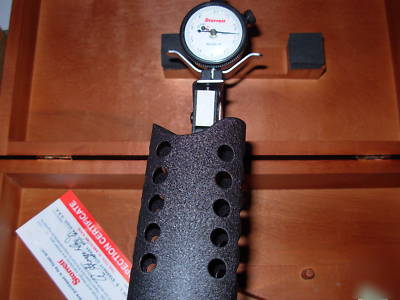

Starrett 1150 2-4 inch range snap gage with indicator
LS Starrett Co. 1150 series 2-4 inch snap gage.
The tool has an Aluminum body with handles and also the accuracy of 0.0001 with a precision dial indicator on the top for easy reading, tool is unused and comes with factory wood box and allen wrench for adjustments.
. Flat gaging contacts simplify
measurement close to shoulders. The top
sensitive contact may be reversed to present
a spherical face to the work. An adjustable
backstop simplifies centering the work.
The contacts and backstop are 5/16
diameter hardened tool steel, precision
ground and lapped flat. The contacts are
individually adjustable to a maximum
2 range and are locked in position by
tightening parallel-lock clamps to maintain
parallelism of faces. Both contacts are also
keyed to maintain orientation of faces
Plus or minus tolerances are read directly
from the indicator since the dial face has
a double row of graduations reading in
opposite directions from zero, with minus
graduations in red and plus in black. The
indicator can be rotated 360 and locked in.
