Oscilloscope probe dl-3125 1.2 kv high voltage kit

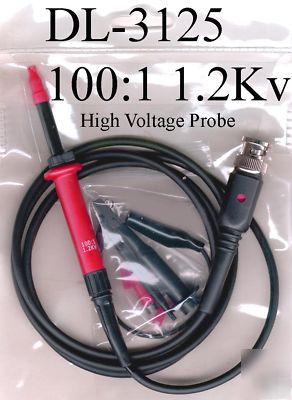

1.2 Kv High Voltage Probe kit DL-3125
DL-3125 1.2 Kv Oscilloscope Probe Kit.
The 3100 Series are designed for analysis of circuits up to a maximum bandwidth of 250 MHz.
* Rise Time 1.4 ns, Input resistance 100M, Input capacitance 6.5pF, Compensation range 10-50pF, Cable length 1.3M
* Working voltage 1200 VDC + Pk AC.
* The DL-3125 is a passive, high impedance, high voltage oscilloscope probe designed and calibrated for use on instruments having an input of 1M Ohm shunted by 15pF. However, it may be compensated for use with instruments having an input capacitance of 10-50pF.
