Kramer vs-21A high performance 2X1 switcher
KRAMER KRAMER KRAMER KRAMER KRAMER
The VS-21A is a high performance switcher for component video and digital audio signals on RCA connectors. It switches any one of two component video and S/PDIF audio signals to a single component video and S/PDIF audio output.
* High Bandwidth - 700MHz (- 3dB)
* Mechanical (Passive) Switching - No power required
* Desktop Size - Compact size
* Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-81 adapter

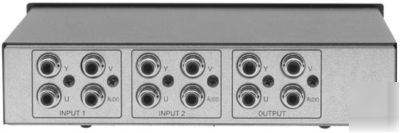

* INPUTS: 2 sets of component video (YUV) and S/PDIF or mono unbalanced audio on RCA female connectors
* OUTPUTS: 1 set of component video (YUV) and S/PDIF or mono unbalanced audio, on RCA female connectors
* BANDWIDTH (- 3dB): Video: YUV, 700MHz
* VIDEO CROSSTALK (all hostile): 51dB, 5MHz

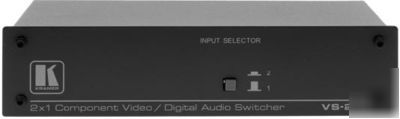

* CONTROLS: Channel selector via push button on front panel
* SWITCHING SYSTEM: Mechanical, "Break-before-make"
* COUPLING: VIDEO: DC AUDIO: DC
* POWER SOURCE: Not fed - mechanical
* DIMENSIONS: 18.8cm x 10.2cm x 4.4cm (7.4" x 4" x 1.7"), W, D, H.
* WEIGHT: 0.64kg. (1.4 lbs.) approx.
This is a new unit in the original packaging. It has not been used and the unit is still shrink wrapped.
