Koyo direct logic 205 plc with DL240 cpu & i/o modules

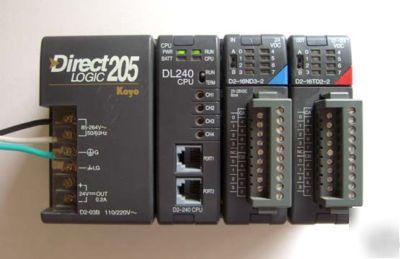

Koyo Direct Logic 205 PLC with DL240 CPU, D2-16ND3-2 24 VDC input module and D2-16TD2-2 12-24 VDC output module. This unit has the D2-03B base with power input of 110/220 V at 50/60Hz. The D2-240 CPU has 3.8K total memory with 2 RS-232C communication ports. There are four potentiometers on the face plate of the D2-240 CPU. They have a resolution of 256 steps and can be used to externally adjust four predefined V-memory locations inside the D2-240 CPU. You specify upper and lower limits for the values and the CPU takes care of the rest! The D2 16ND3-2 input module is a 16 point 24v dc current sinking/sourcing with 2 isolated commons. The D2-16TD2-2 output module is a 16 point 12-24 VDC current sourcing output module with 2 common terminals, 0.1A per point, 1.6A.
