Hyd 3/8" double acting plough overturning valve V0300
Hyd 3/8" Double Acting Plough Overturning Valve V0300

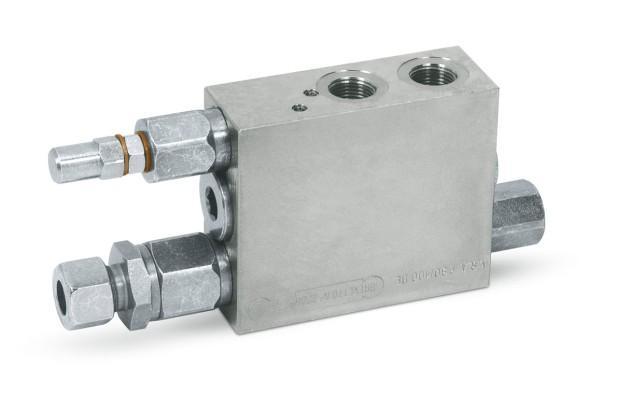

HYDRAULIC 3/8" DOUBLE ACTING PLOUGH OVERTURNING VALVE - V0300
This valve has been realised for use on cylinders for reversible plough to obtain the automatic oil backflow and therefore the motion reversal of the hydraulic cylinder that makes the plough rotating. It is provided with a double pilot check valve which guarantees high safety and enables to put and block the cylinder in any position. The motion reversal of the piston is made through a differential type relief valve exactly in the dead point of the plough, generating more power and speed. It can be assembled on heavy and unbalanced plough with the following internal diameters 40/50,60/80, 80/100, 100/110, 110/130mm.
Applications : Connect C1 to the cylinders stem, C2 to the block, P and T to the machine inlet. Thanks to its shape, it can be in-line assembled on a hydraulic cylinder or directly fixed on the plough through the threaded hole made on the body.
* Internal Diameter: 80/100mm
* Max Exchange Pressure 250 Bar
These valves are supplied with exchange pressure at 140 Bar; According to your requirements, pressure setting can be modified by acting on the pressure regulator.
