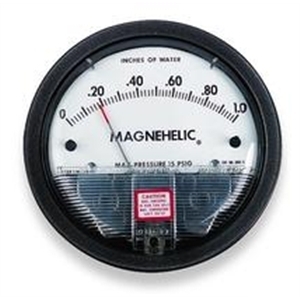

Dwyer 2030 differential pressure gauge
* Differential Pressure Gauges
* Versatile gauges measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems, and fluid amplifier/fluidic system pressure.
* Feature high resistance to shock and vibration. Indicate low air or gas pressure-positive, negative (vacuum), or differential. Models are calibrated in inches water column or psi; dual scale (pressure/velocity) models also calibrated in feet per minute.
* Side and rear pressure connections
* Gauges include two 1/8" NPT plugs, two 1/8" NPT to 3/16" I. D. rubber tubing adapters, and 3 mounting adapters with screws.
Differential Pressure Gauge, Pressure Range 0-30.0 Inches WC, Pressure Range Minor Divisions 1.00, Rated Total Pressure -20 Inches Hg to 15 PSIG, Differential PressureItemDifferential Pressure Gauge Scale TypePressure Pressure Range0 to 30" WC Pressure Range Minor Div.1.00" WC Rated Total Pressure-20" Hg to 15 psi Full Scale Accuracy (%)+/-2 Connection Size NPT (In.)1/8 Dial Size (In.)4 Ambient Operating Range (F)20 to 140 IncludesInstructions, Two 1/8" NPT Plugs, Two 1/8" NPT to 3/16" I.D. Rubber Tubing Adapters and Three Mounting Adapters with Screws Weight1.60
