> 1.5" stainless steel ball valve fluid flow 2FT XL11000
1.5" stainless steel ball valve fluid flow 2FT XL11000

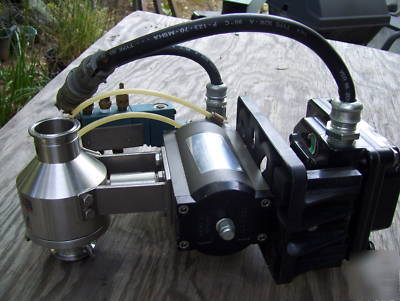

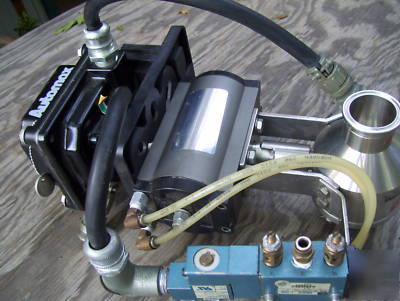

1 1/2" Stainless Steel Ball Valve
Uses flow clamp on the connection to the valve
PDM a type of sanitary fitting

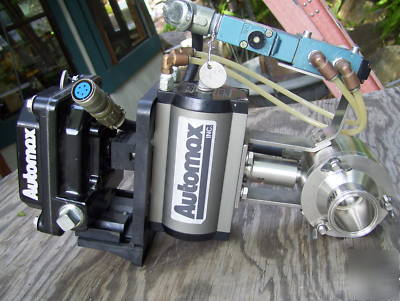

the valved is rated at 300 lbs WP at 350 degree F, there is a Mecair rotary actuator operator, 75/90 degree DE pneumatic. This appears to be Auto Max also.
There is a Auto Max ultra switch XL11000, this is an electrical limit switch to position the valve.
There is one Mac pneumatic valve 120 volt 60 hz @ 6.8 watts, or 110 volt @ 50 hz
the Mac model # is 8110-PP-111CC-152, it is rated vacuum to 150 psi.
the model# on the mac connector is PPD-111CCAA.
Also there's one matching pair of 5 pin Amphenol male & female plug & connector.
Size: the entire valve is approx. 7"D x 11"W x 16"H
RETURNS: Can be returned within 7 days for a full item refund.
SALES TAX: 8.25% in California only.
