Electroid 24-volt electric clutch 4580434-b

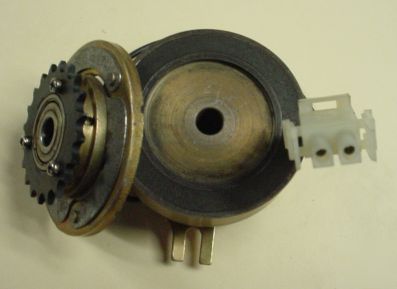

Item is a small electric clutch, P/N 4580434-B, which was manufactured by Electroid Company. The clutch has been modified from its original form by the addition of a sprocket, which is easily removed with three screws, and which can be replaced with some other drive component. The coil is designed to set screw onto a .315" diameter (8 mm) shaft. The clutch plate has a bearing that slips over the same size shaft. When the coil receives power, the rotating clutch plate snaps against the inner and outer coil poles. The original torque rating is unknown. This item was originally purchased and modified for use in a prototype. It is warranted to be in excellent working condition.
Coil is rated for 24 volts ac or dc
3/16 wide slot in mounting tab
2.240 outside diameter of clutch body
1.920 length over heads of screws
.250 spacing center spacing between leads in white plastic connector
