Danobat high accuracy cylindrical grinding machine m/51

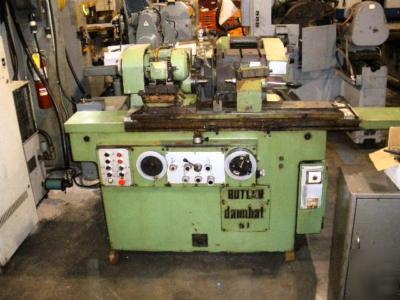

Danobat High Accuracy Cylindrical Grinder M/51
Model: M/51 Serial No. 20423025282 Year: 1984
Distance between centers: 500 mm
Maximum diameter to be ground with 400 abrasive wheel: 200 mm
Maximum diameter of component: 258 mm
Adjustment of the feed of the wheel head slide at each table reversal: 0-0.05m/m
Adjustment of the feed of the wheel head slide when plunging: 0-0.05 mm/sec.
Adjustment of spark out time: 0-60 sec.
Approx. net weight: 5500 pounds
Adjustment of table speed: 0-6 m/min.
Adjustment of dwell on table reversal: 0-8 sec.
Maximum diameter of wheel: 450 mm.
Maximum width of wheel: 50 mm.
Motor horse power: 0.47-0.68 Hp
All equipment can be seen under power by appointment.
