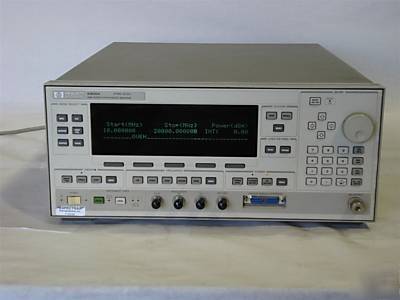

Agilent 83620A synthesized sweeper, 10 mhz to 20 ghz
Synthesized Sweeper, 10 MHz to 20 GHz
Description: Signal Generator, Synthesized Sweeper
The Agilent 83620A synthesized sweeper is used for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83620A to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.
* Scan modulation to simulate antenna scan patterns
* Accurate fixed and swept frequency offset for two-tone measurement
* User flatness correction for leveling at remote points in the test system
* General purpose source for use in component test, receiver test and for frequency conversion
* Sweep modes: Step, List, Ramp
* Maximum power (<20 GHz): +13 dBm
* Power sweep range: -20 dBm to maximum power
* Phase noise (20 GHz at 10 KHz): -70 dBc
* Max FM deviation (locked): +/- 8 MHz
* Adapter, Type-N to 3.5 mm (F) Qty. 1
