500 lb. ransome heavy duty welding positioner #25380

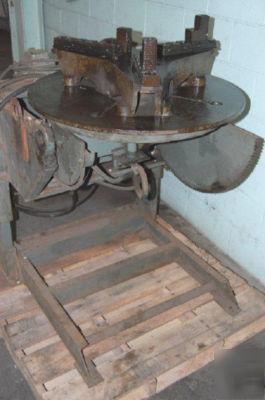

500 LB. RANSOME HEAVY DUTY WELDING POSITIONER
New 1978, Serial No. 1322150, Model 5PA
360 Degree Variable-Speed Power Rotation
30" Radially T-Slotted Rotary Table
Hand Held Variable-Speed Control
Ransome 3-Jaw Self Centering Welding Chuck
Table Diameter.......................... 30"
Table Weight at 6" Eccentricity......... 500 LBS.
Table Weight at 12" Eccentricity........ 312 LBS.
Table Weight at 18" Eccentricity........ 227 LBS.
Table Weight at 24" Eccentricity........ 178 LBS.
Rotation Torque, Inch Pounds............ 3000 LBS.
Tilt Torque, Inch Pounds................ 5000 LBS.
Table Rotation Speed, Variable.......... .05 to 2.0 RPM
Table Rotation, Degrees................. 360 DEGREES
Table Tilt, Degrees..................... 135 DEGREES
Vertical Table, Adjustment.............. 18"
Vertical Table Height, Maximum.......... 50-1/2"
Vertical Table Height, Minimum.......... 32-1/2"
PRICE: F.O.B. OUR WAREHOUSE............. $3,950.00
All machines/equipment subject to prior sale.
