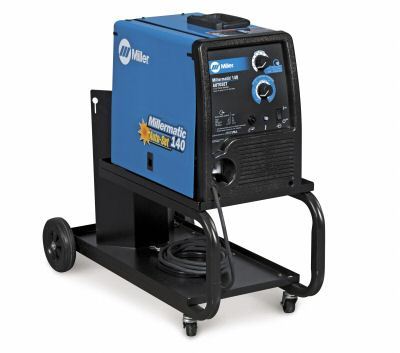

Miller millermatic 140 w/as mig welder 907335011
A ALL-IN-ONE WIRE WELDING PACKAGE THAT WELDS 24 GAUGE UP TO 3/16" (0.8-4.8MM) MILD STEEL. AVAILABLE IN TWO MODELS-STANDARD VERSION AND A VERSION WITH NEW AUTO-SET FEATURE THAT MAKES WELDING EVEN EASIER. (SEE THE AUTO-SET VERSION LISTED ALSO IN OUR STORE LISTINGS.)
A NEW MILLER MACHINE FEATURING THE LATEST IN MILLER TECHNOLOGY. IT'S A BREAKTHROUGH FEATURE...IT'S AUTO-SET
Millermatic 140 with AUTO-SET... NEW MODEL... PLUS MANY OTHER GREAT FEATURES
NEW! Spool gun compatible. Finally a reliable and economical way to weld aluminum. Hooked up to a Millermatic 140 or 140 with Auto-Set, the NEW Spoolmate 100 Series spool gun allows you to weld from 18-14 gauge aluminum.
New! Auto Set is a breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG, minus the guesswork! Simply set the wire diameter, set the material thickness, and start welding!
Manual Mode has the flexibility to manually set weld parameters for broader applications.
NEW! Smooth-Start patent-pending technology provides a smooth, spatter-free start. The best starting machine in the small MIG category. No more pop-gun starts or spatter to clean up.
Durable cast aluminum feedhead incorporates dual groove quick-change drive roll and spring-loaded tension arm with calibrated tension knob, all designed to make setup easier and faster.
Thermal Overload Protection shuts down the unit and activates over- temperature light if airflow is blocked or duty cycle is exceeded. Automatically resets when fault is corrected and unit cools.
"Tip-Saver" short circuit protection shuts down output when tip is shorted to the work. Extends contact tip life and protects internal components from damage. Trigger reset permits quick reset at torch rather than unit.
Standard Built-in solid-state contactor circuit makes wire electrically "cold" until trigger is pulled. Makes unit safer, and is easier to position torch to work before starting to weld.
Easy access to output studs provides convenient polarity changeover when switching from solid or flux cored wires.
Uses 4 or 8 in (102 or 203 mm) spools and can be set up to weld with wire sizes .024 - .030 in (0.6 - 0.8 mm) mild/stainless steel and .030 - .035 (0.8 - 0.9 mm) flux cored.
Note: Auto-Set is calibrated for .024 and .030 mild steel wire and C25 shielding gas (75% Argon, 25% CO2). Use manual mode for broader applications with mild steel, or to weld stainless steel or flux core.
* 10 ft (3m) M-10 Miller MIG gun
* Smith Argon and AR/CO2 mix regulator/flow gauge and gas hose
* 6 ft (1.8 m) power cord and plug
* Two contact tips for .024 in (0.6 mm) wire and two contact tips for .030 in (0.8 mm) wire
* Small Running Gear with Cylinder rack #194776 or #300425
* Spool of Hobart .024 in (0.6 mm) solid wire
CLICK LINK BELOW TO SEE COMPLETE MACHINE SPECIFICATIONS
http:// /pdf/spec_sheets/DC12-42.pdf
