Lot of 40 pcs test equipment hp tektronic lambda fluke
I have manuals for several of these units. I can include them as well if you are interested.
1. Fluke 8050A Digital Multimeter-K^ functions is out of limits on all ranges. Display window is fading out. All other functions works. Limited Workable.
2. Kontron DMM 402 Digital Multimeter- No power. Fuses ok. PLastic broken on top rear corner.
3. International Light IL 500A Reasearch Radiometer- Unit powers up ok. Meter will zero in. Sensitivity facotr knob is loose inside unit. Supression knob is stuck and will not adjust.
4. Tektronix 176 Pulsed High Current Fixture- Needs other test equipment to test this unit. Non-functional.
5.Data Precision 5740 Multifunction Counter- All functions work. Last LED Segment on the left side display has light burned out. Replace the LED chip and the unit will be fully workable.
6. Lambda LQD-4421 Dual Regulated Power Supply-CH1 left side works/ ch2. right side is stuck on 40 volts, will not adjust. Semi workable.
7. HP 6205B DC Power Supply-Left side of meter is pushed in. Check switch before use.
8.Fluke 8050A Digital Multimeter- Most funtions test good. Relative button doesn't work. Workable unit.
9.Fluke 8050A Digital Multimter-Display is stuck in one function.
10. HP 3403B True RMS Voltmeter-Unit does not measure and diplay is fading out. Non-workable unit.
11. General Radio 602-K Decade Resistance Box-3 out of 4 ranges are good. The tenth range is out of limits. Limited workable unit.
12. Wavetek 142 HF VCG Generator-No 50^ signaloutput. Unit is not working.
13. Fluke 8000A Digital Multimeter-K^ range is the only funtion that works.
14. Fluke 8000A Digital Multimeter-Display is OK, will not take measurements. MA connector is damaged. Unit is non workable.
15. HP 6205C Dual DC Power Supply- NO movement from meter when voltage is adjusted . Non workable unit.
16. PMC Power Mate BP-34D Regulated Power supply-Voltage adjust is ok. AC hun is out of limits. Ringing internal noise. Limited workable.
17. HP Harrison 6284A DC Power Supply- Voltage adjust is intermittent causing power supply to max output.
18.Lambda LQD-421 Dual Regulated Power Supply-Ch. 1 will adjust in volts, does not show on idsplay. Ch. 2 is stuck at high voltage. Non- workable unit.
19. Lamda LPD-421A-FM Dual Regulated Power Supply-Both channels are intermittent. Internal Problems.
20. Data Precision 3400 Digital Voltmeter- K^ range is out of limits. Limited unit.

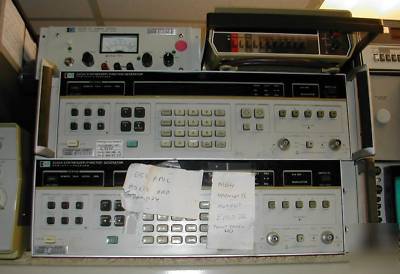

21. HP 3325A Synthesizer/Function Generator-OSC Fail. A3U7 Bad. High harmonic output. Front Panel bad.
22. HP 3325A Synthesizer/Function Generator-No power.
23.HP 181A Oscilloscope wit 1801A/1821A-No power
24. Tektronix 2213 60 mhz oscilloscope-Powers up ok. Power button is sticky. No display on blue screen.
25. HP 209A Oscillator-All functions has an intermittent signal on all ranges. Possible loose connection inside unit.
26.HP 204C Oscillator-x5,x10,x1K,x10K,x100K ranges are all out of limites. intermittent problems.
27-HP-204C Oscillator-No power, no signal output all ranges.
28. HP 6201B DC Power Supply-overloads on voltages. Unit does not work.
29. Fluke 8000A Digital Multimeter-Missing LED segment. DCV ranges work. Limited workable unit.
30. Fluke 8010A Digital Multimeter-LCD display is dark and burnt. Non-readable.
31. Keithley 179 TRMS multimeter-Resistance ganges do not work-minus sign is on, display always on voltage ranges. Limited.
32. HP 3465A Digital Multimeter-Resistance ranges shorts out when you plug the leads into the unit. Internal short.
33. HP 6205B Dual DC Power Supply- Bad Unit. High voltage, high current.
34. HP 1220A Oscilloscope- No power.
35. HP-1741A 100mhz Oscilloscope-All functions work well except channel B there is no signal display on screen. Unit is limited to channel A only. 3 of the buttons, mixed, AVSB and Persistence buttons are cracked and/or broken.
36. HP 350D Attenuator-Unit test good. Workabl unit. Missing 2 knobs.
37. HP 5383A 520 mhz Frequency counter-Powers up-zeros come on display. Nothing changes when unit is under test. Unit is stuck on zeros. Internal problems.
38. Lmabda LP-412A-FM Regulated Power Supply-Current Limiter is intermittent causing high voltage output. Internal problems.
39. Lambda LP-411A-FM Regulated Power Supply-Voltage adjust works OK, current meter is stuck mechanically.
40.HP 5315B Universal Counter-All functions intermittent. Internal Problems.
