Koch sbd-b/bl-25 drilling sawing dowel placing center

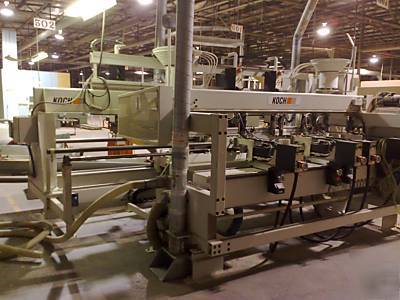

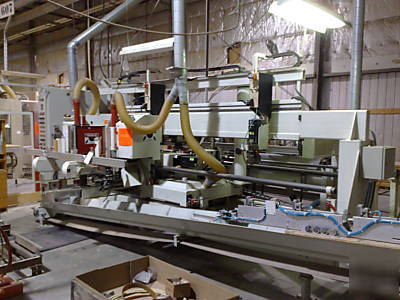

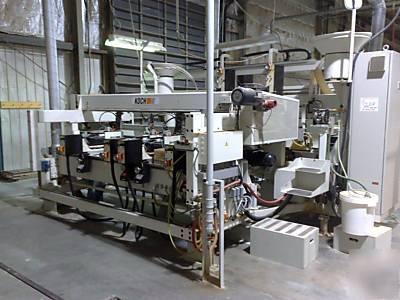

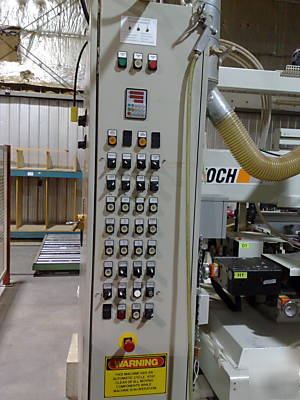

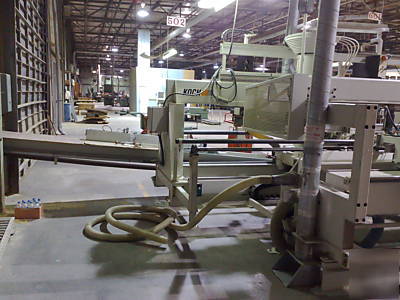

2001 KOCH SBD-B/BL-25 CNC DRILLING SAWING DOWEL PLACING CENTER; WITH CONTROLS AND 12"X45'
You can watch video http:// /watch?v=lHkKQ7E_nfk

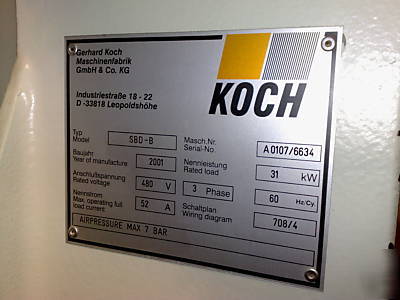

Koch System Model SBD-B + BL-25
Sawing, Boring, Dowel Drilling and Dowel placing Machine. SBD-B
This machine/systems are determined to produce dowel connections.
They are in general only suited for use on wood and chipboards.
stock length 220 -2500mm (8.66 98.43 )
stock width 30 - 200mm (1.2 7.87 )
stock height 12 - 40mm (0.5 1.5 ) (2 ?)
w/o accessories SBD-B/S kg approx. 5000 (11000 lb)
w/o accessories BL-25 kg approx. 3500 (7700 lb)
Width SBD-B + BL-25 4600 mm (181 )
Threephase current V/Cy 480/60
Workplace-related emission rating
Work noise emission dB(A) 75,6
From +10C to +40C (50F to 100F)
Air: Pressure of at least 7-max10 bar is required to operate the machine.
Approximately 120 liters of inducted air
Min air speed (dry chips) 20 m/s
HM-saw blade Diameter 350 mm (13.8 ) 84 teeth
