Fairchild RFP70N03 70A, 30V power mosfet bag of 10
RFP70N03 70A, 30V Power MOSFET Bag of 10
70A, 30V, Avalanche Rated N-Channel Enhancement-Mode Power MOSFET
power MOSFET is manufactured using the MegaFET
process. This process, which uses feature sizes approaching
those of LSI integrated circuits gives optimum utilization
of silicon, resulting in outstanding performance. They were
designed for use in applications such as switching regulators,
switching converters, motor drivers, relay drivers and
emitter switches for bipolar transistors. These transistors
can be operated directly from integrated circuits.
Temperature Compensating PSPICE Model
Peak Current vs Pulse Width Curve
UIS Rating Curve (Single Pulse)
+175oC Operating Temperature
The specifications and info on the RFP70N03 can be found on this link: Info link

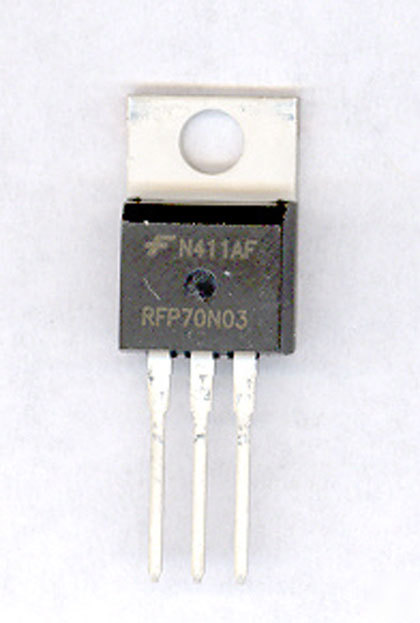

Click an Image to see a larger picture
