> 2982 giddings & lewis bickford super service 24†drill

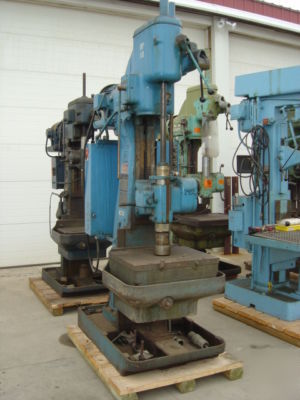

2982 giddings & lewis bickford super service 24†drill
SUPER SERVICE 24 BOX COLUMN DRILL
Capacity swing, center of spindle to face of upper column 11
Capacity, swing measured on plane of table 11
Maximum distance from spindle to table 31
Maximum distance from spindle to finished surface of base 44-5/8
Minimum distance from spindle to finished surface of base 17-3/8
Maximum distance, top of table to finished surface of base 23-5/8
Minimum distance, top of table to finished surface of base 12-7/8
From floor to top of finished surface of base 6
Capacity swing, center of spindle to front of lower column 12
Top of base to top of chip pan 24
Working surface of table 19 x 24
Vertical adjustment of table 10
Vertical adjustment of sliding head 16
Vertical travel of spindle by power feed 10-1/8
Vertical travel of spindle by hand feed 10
Standard feeds furnished (9) in thousandths per revolution 5 43
Spindle bored to fit Morse taper #4MT
Approximate floor space 28 x 60
Machine is equipped with power feed and a magnetic table.
