Us motor AF32 2HP 1740 3PH 145T U2E2D electric emerson

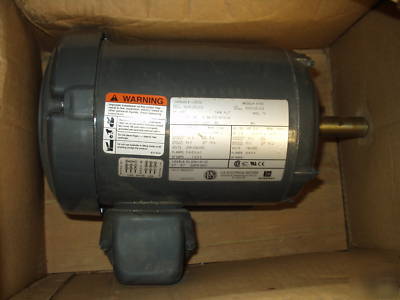

US Motors / Emerson Model AF32
Shaft End Bearing: 6205-2ZJ/C3; Opp. End Bearing: 6203-2ZJ/C3
FR 145T, Type: FUT; Enclosure: TE
PH 3, Max Amb: 40 Deg C, ID# F07-AF32-M
Efficiency: 81.5, Max KVar: 1.4
NEMA NOM Efficiency: 84.0, NOM PF: 75.3
USABLE ON 208V 60Hz AT 6.7 AMPS MAX
Emerson Motors' General Purpose Three Phase, Totally enclosed Fan cooled (TEFC) Unimount Energy efficient products include the following features: Class F insulation, class B rise at full load , Rolled steel frame, Full 50 & 60 Hertz operating data on Nameplate, 40C Ambient, NEMA Design B performance, Full HP @ 50 Hz, Dual voltage ratings suitable for part winding start (PWS) on low voltage, "CE" Mark on Nameplate, Conversion Kits: C&D Flanges, Canopy, Brakes (56-210 Frames).
